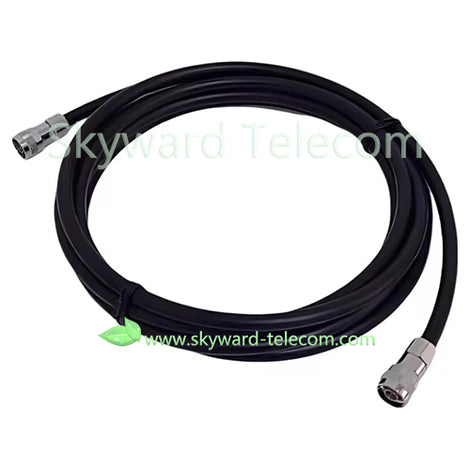

Andrew CNT-400 Coaxial RF Cable
Features and benefits
CNT-400, CNT® 50 Ohm Braided Coaxial Cable, variable, black PE jacket
Andrew CNT-400 Coaxial RF Cable, Andrew Shielded Ultra-Flexible Feeder Cable, 50-7DFB Cable
Product classification
| Product Type | Braided coaxial cable |
| Product Brand | compatible/CNT® |
| Product Series | CNT-400 |
General specifications
| Braid Coverage | 90 % |
| Cable Type | CNT-400 |
| Jacket Color | Black |
Dimensions
| Diameter Over Dielectric | 7.24 mm | 0.285 in |
| Diameter Over Jacket | 10.29 mm | 0.405 in |
| Diameter Over Tape | 7.391 mm | 0.291 in |
| Inner Conductor OD | 2.74 mm | 0.108 in |
| Outer Conductor OD | 8.08 mm | 0.318 in |
| Nominal Size | 0.400 in |
Electrical specifications
| Cable Impedance | 50 ohm |
| Capacitance | 78 pF/m | 23.774 pF/ft |
| dc Resistance, Inner Conductor | 4.69 ohms/km | 1.43 ohms/kft |
| dc Resistance, Outer Conductor | 5.61 ohms/km | 1.71 ohms/kft |
| dc Test Voltage | 2500 V |
| Jacket Spark Test Voltage (rms) | 4000 V |
| Maximum Frequency | 16.2 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 16 kW |
| Shielding Effectiveness | 90 dB |
| Velocity | 85 % |
Our Services
- Cost-effective equipment
- Faster delivery
- Worldwide shipping
- Alternative supply
- Sample service
- Test and warranty
For this model, we have new original, cost-effective compatible, and economical second-hand . We provide you with a variety of choices, the same quality! Each products has been strictly tested to ensure stable performance, worry-free use, and enjoy an efficient experience.
Full range of options: new original quality assurance, compatible models are super value and practical, and second-hand are economical and durable.
Strict quality control: each products is tested before shipment.
Worry-free after-sales: warranty commitment, normal use, and quality problems can be returned or exchanged.
About Us
Our company set up an international sales headquarters in Changsha, China in 2009. Based in China, we have international operations in Southeast Asia, Europe, the United States, Africa and Russia, relying on existing core network simulation technology to manufacture old equipment and ODM. It is an excellent operation and maintenance service provider for communication engineering, network optimization and maintenance. Provide base stations, transmission, power supply, optical modules, cables, terminals and other old equipment for leading telecom operators in the region, supporting auxiliary materials as equipment renovation and integrated maintenance services. Service manufacturers include Nokia, Ericsson, ZTE, Dell, Alcatel, Nortel, Siemens, Lucent.
FAQ
1.Our customers guarantee quality?
Before mass production is always pre-production samples
A final inspection is always carried out before shipment
2.What can you buy from us?
Optical fiber cable, feeder jumper cable, outdoor optical fiber cable, antenna, transmission cable, Transmission module,Radio,Ericsson Devices,Nokia Devices,ZTE Devices,Baseband Unit (BBU),Bracket,etc. Customized
3.What services can we provide?
Accept delivery terms: FOB, CIF, EXW, FCA, DDP, DDU, Express.
Accepted payment currencies: USD, RMB.
Accepted payment methods: T/T, Credit Card, PayPal, Western Union, Cash, Escrow.
Spoken Language: English, Chinese.
Welcome to contact us to get super surprising prices!
