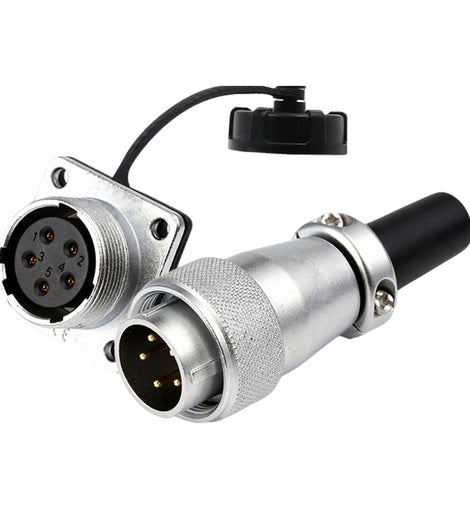

WS20 Series 5 Pin Aviation Connector Waterproof Power Plug IP67
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Model | WS20-5 pin (plug) + WF20-5 pin (panel socket) |
| Number of Contacts | 5 pins |
| Housing Material | Zinc alloy with nickel plating (wear-resistant, corrosion-resistant) |
| Contact Material | Gold-plated brass (low resistance, anti-oxidation) |
| Protection Class | IP67 (immersion in 1m water for 30 minutes, fully dustproof) |
| Rated Current | 10A per pin |
| Rated Voltage | 500V AC |
| Withstand Voltage (1 min) | 1500V AC |
| Contact Resistance | ≤2.5 mΩ |
| Insulation Resistance | ≥2000 MΩ |
| Contact Diameter | φ1.5mm × 5 |
| Wire Size | ≤2mm² / 14 AWG |
| Connection Method | Screw-lock (vibration-resistant, anti-loosening) |
| Operating Temperature | -40℃ ~ +85℃ |
Key Features
-
IP67 High Protection Level
The double-layer waterproof gasket design allows immersion in 1m water for 30 minutes and full dust protection, meeting the stringent requirements of outdoor, underwater, and high-dust environments.
-
Multi-Channel Transmission
With 5 pins, it supports simultaneous transmission of power and multiple control signals, making it ideal for complex systems that require multiple connections.
-
Low Contact Resistance
Gold-plated contacts ensure contact resistance ≤2.5mΩ, minimizing heat generation and signal loss for long-term stable transmission.
-
Vibration-Resistant Locking Design
The screw-lock structure provides high connection stability, resisting loosening caused by equipment vibration to ensure uninterrupted signal/power transmission.
-
Easy Panel Mounting
The WF20 socket features a square flange design, allowing direct installation on equipment enclosures or panels for neat wiring.
-
Dust Cover Included
The socket is equipped with a dust cover to protect contacts from contamination when not connected, extending service life.
Main Applications
- Industrial Automation Equipment: Connects PLCs, sensor arrays, and control panels to transmit 500V-level power and multi-channel control signals.
- Outdoor Security Equipment: Provides high-voltage waterproof power and data connections for PTZ cameras, LED displays, and access control systems.
- New Energy Field: Used for power and communication signal transmission in electric forklifts, charging piles, and battery management systems.
- Construction Machinery: Adapts to multi-channel signal/power connections between cabs and external components of excavators, cranes, etc.
- Marine and Rail Transit: Delivers reliable high-voltage electrical connections in humid, high-vibration environments.
