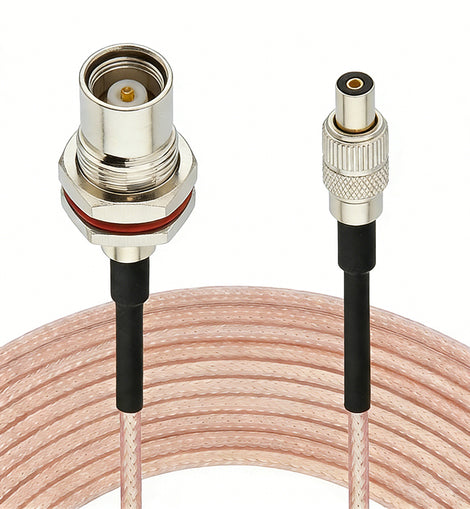

Mini BNC Female to BNC Female Video SDI Cable (75 Ohm)
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Impedance | 75 Ohms (precision-matched for SDI video signals) |
| Cable Type | Low-loss 75Ω coaxial (e.g., RG179/RG316) |
| Connectors | Mini BNC female (twist-lock) to BNC female (panel-mount with waterproof rubber gasket) |
| Center Conductor | Oxygen-free copper (OFC) for minimal signal loss |
| Shielding | High-density braided copper mesh (≥95% coverage) + aluminum foil, providing superior EMI/RFI rejection |
| Dielectric | Foam polyethylene/PTFE (low attenuation for high-frequency signals) |
| Outer Jacket | Flexible PVC (abrasion-resistant, suitable for on-site routing) |
| Supported Standards | 3G-SDI, HD-SDI, SD-SDI |
| Transmission Distance | Up to 30 meters for 3G-SDI signals (RG179) |
| Bandwidth | Supports up to 3GHz, enabling 1080p 60fps HD video transmission |
Key Features
- Dual Female Interface Adaptability – Connects male Mini BNC ports (e.g., on compact cameras) to male BNC ports (e.g., on monitors/switchers), eliminating the need for additional adapters.
- 75Ω Impedance Matching – Strict impedance control prevents signal reflection and ensures consistent signal integrity over the transmission path.
- High-Density Shielding – Multi-layer shielding blocks electromagnetic interference from studio equipment, wireless devices, and lighting, ensuring crystal-clear video quality.
- Waterproof Panel-Mount BNC Female – The BNC female connector features an integrated waterproof rubber gasket, allowing direct installation on equipment panels or enclosures for outdoor/humid environments.
- Flexible & Durable – The thin, flexible cable design is easy to route through camera rigs, flight cases, and tight spaces, while the robust PVC jacket withstands frequent handling.
Main Applications
- Film Production: Links compact cameras with Mini BNC male outputs to monitors/recorders with BNC male inputs.
- Live Broadcasting: Transmits signals from field cameras to OB van switchers in multi-camera productions.
- Broadcast Studios: Used for signal distribution between Mini BNC signal sources and standard BNC infrastructure.
- Security Surveillance: Connects Mini BNC-equipped cameras to DVR/NVR systems with BNC inputs.
