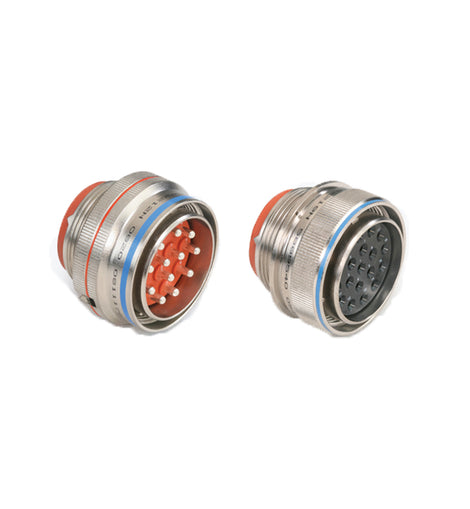

Military grade environmentally resistant circular snap fit connector
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Connector Type | Circular bayonet (plug + socket, male/female mating) |
| Housing Material | Corrosion-resistant alloy (stainless steel, cadmium-plated aluminum alloy, salt spray/humidity resistant) |
| Contact Material | Gold-plated copper alloy (low resistance, anti-oxidation, corrosion-resistant) |
| Locking Method | Bayonet quick-lock (fast mating, anti-loosening) |
| Protection Class | IP67/IP68 (waterproof, dustproof, for outdoor/marine environments) |
| Corrosion Resistance | Complies with MIL-STD-810 salt spray and humidity test standards |
| Operating Temperature | -55℃ ~ +125℃ (military wide temperature range) |
| Vibration/Shock Resistance | Meets MIL-STD-202/810 military vibration and shock specifications |
| Termination | Crimp/solder (high-reliability wire connection) |
| Applications | Military equipment, aerospace, marine, offshore engineering, harsh industrial environments |
Key Features
-
Bayonet Quick-Lock Mechanism
One-touch bayonet design enables fast, convenient mating and unmating. The secure lock resists loosening under severe vibration and shock, preventing accidental disconnection.
-
Superior Environmental Corrosion Resistance
Corrosion-resistant alloy housing and gold-plated contacts withstand salt spray, seawater, humidity, and chemical corrosion, ideal for extreme corrosive environments such as marine, coastal, and chemical industries.
-
Military-Grade High Reliability
Compliant with military standards such as MIL-DTL-38999, with low contact resistance and long mating life to meet the demands of high-reliability military systems.
-
High Protection & Wide Temperature Adaptability
Integrated sealing structure achieves IP67/IP68 protection, operating stably from -55℃ to +125℃ to adapt to extreme temperature environments such as polar regions, deserts, and high altitudes.
-
Lightweight & High Strength
Alloy housing balances lightweight design with mechanical strength, resisting impact and extrusion for airborne, shipboard, and vehicle-mounted mobile equipment.
-
Flexible Multi-Pin Configuration
Supports various pin counts (e.g., 12, 19, 32 pins) for simultaneous power and multi-channel signal transmission, meeting complex system integration requirements.
Main Applications
- Military Equipment: High-reliability connections for fighter jets, naval vessels, tanks, missile systems, radar, and communication equipment.
- Aerospace: Vibration and corrosion-resistant electrical connections for aircraft onboard systems, satellite ground stations, and UAVs.
- Marine Engineering: Salt-spray resistant waterproof connections for marine electronics, oceanographic exploration equipment, and offshore platforms.
- Harsh Industrial Environments: Corrosion and vibration-resistant connections for oil drilling, chemical equipment, and heavy machinery.
- Special Vehicles: Power and signal transmission for onboard equipment in military off-road vehicles and engineering rescue vehicles.
