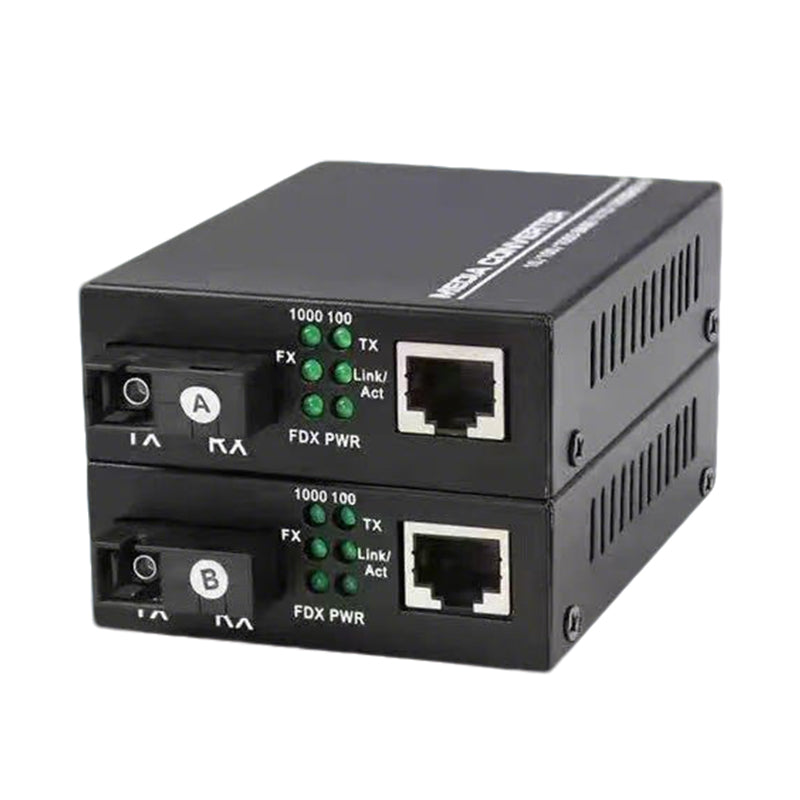

Gigabit Single-Mode Single-Fiber SC Fiber Media Converter (Pair)
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Model | Gigabit Single-Mode Single-Fiber SC Media Converter (A/B Pair) |
| Interface Type | 1×SC single-fiber port + 1×RJ45 port |
| Transmission Rate | 10/100/1000Mbps auto-negotiation |
| Fiber Type | Single-mode fiber (9/125μm) |
| Transmission Distance | 20km/40km/60km/80km (optional) |
| Operating Wavelength | 1310nm/1550nm (single-fiber bidirectional) |
| Duplex Mode | Full-duplex/half-duplex auto-negotiation |
| Power Input | DC 5V/2A or AC 100-240V |
| Operating Temperature | -10℃ ~ +55℃ |
| Housing Material | Metal housing (excellent heat dissipation and anti-interference) |
Key Features
-
Single-Fiber Bidirectional Transmission
Adopts WDM (Wavelength Division Multiplexing) technology, enabling bidirectional data transmission over a single optical fiber, significantly saving fiber resources and reducing cabling costs.
-
Gigabit Auto-Negotiation
Supports 10/100/1000Mbps auto-negotiation, with the RJ45 port compatible with Fast/Gigabit Ethernet devices, eliminating the need for manual configuration.
-
Long-Distance Transmission
Single-mode fiber transmission distance up to 20-80km, meeting the needs of long-distance network expansion, such as cross-campus and cross-building interconnection.
-
Plug-and-Play
No drivers or complex configurations required; automatically negotiates the operating mode when powered on, reducing deployment difficulty and maintenance costs.
-
Stable and Reliable
The metal housing provides excellent heat dissipation and anti-interference capabilities, supporting link detection and fault alarms to ensure continuous and stable network operation.
-
A/B Pair Usage
The converters are divided into End A (1310nm transmit / 1550nm receive) and End B (1550nm transmit / 1310nm receive), which must be used in pairs to ensure single-fiber bidirectional communication.
Main Applications
- Security Monitoring: Long-distance fiber transmission between HD cameras and NVRs, replacing traditional copper cables to avoid signal attenuation and interference.
- Enterprise Networking: Gigabit interconnection between headquarters and branches, or between buildings within a campus, expanding network coverage.
- Weak Current Engineering: Fiber-to-the-building (FTTB) and network extension in scenarios such as campus networks, hospitals, and shopping malls.
- Industrial Control: Long-distance data transmission between industrial field devices and control rooms, adapting to complex electromagnetic environments.
- Broadband Access: Fiber-to-the-home (FTTH) and customer-side photoelectric conversion for the last mile of operator networks.
