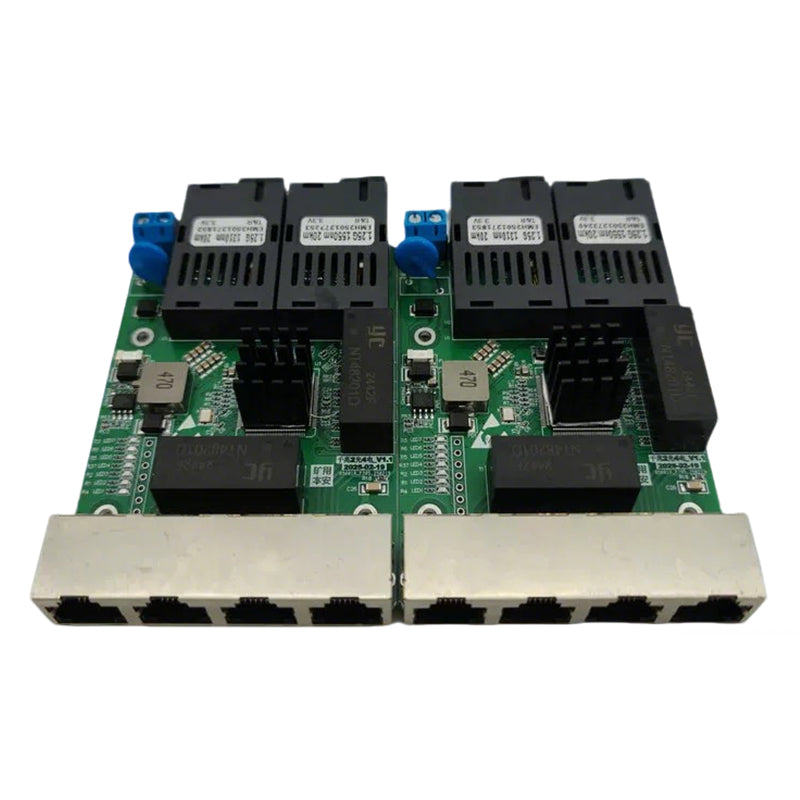

Gigabit 2 Fiber 4 Ethernet Port Switch Motherboard
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Port Configuration | 2×SC dual-fiber ports + 4×RJ45 Ethernet ports |
| Transmission Rate | 10/100/1000Mbps auto-negotiation |
| Fiber Type | Single-mode/multi-mode dual-fiber (9/125μm or 50/125μm) |
| Transmission Distance | Multi-mode: 550m; Single-mode: 20/40/60/80km (optional) |
| Operating Wavelength | 1310nm/1550nm (single-mode); 850nm/1300nm (multi-mode) |
| Duplex Mode | Full-duplex/half-duplex auto-negotiation |
| Power Supply | DC 5V/12V (optional) |
| Operating Temperature | -10℃ ~ +55℃ |
| Applications | Photoelectric conversion, network expansion, security monitoring, industrial control |
Key Features
-
2 Fiber 4 Ethernet Port Design
Provides 2 SC dual-fiber ports and 4 RJ45 Ethernet ports, enabling simultaneous photoelectric conversion and multi-device access to meet complex network topology requirements.
-
Gigabit/100M Auto-Negotiation
Supports 10/100/1000Mbps auto-negotiation, compatible with Gigabit/100M devices without manual configuration.
-
Dual-Fiber SC Ports
Adopts standard SC dual-fiber interfaces, supporting single-mode/multi-mode fiber with flexible transmission distance options to adapt to different long-distance transmission scenarios.
-
Plug-and-Play
No complex configuration required; automatically negotiates the operating mode when powered on, reducing deployment difficulty and maintenance costs.
-
Stable and Reliable
Integrates a high-performance switching chip with low power consumption and high anti-interference capabilities, supporting link detection and fault alarms to ensure continuous and stable network operation.
-
Embedded Design
Compact motherboard form factor, easy to integrate into chassis and internal equipment, suitable for industrial-grade, security, and other embedded applications.
Main Applications
- Security Monitoring: Photoelectric conversion and data aggregation for multiple HD cameras, enabling long-distance monitoring signal transmission.
- Enterprise Networking: Network expansion and photoelectric conversion in offices and campuses to extend network coverage.
- Industrial Control: Photoelectric conversion and data exchange between industrial field devices and control rooms, adapting to complex electromagnetic environments.
- Weak Current Engineering: Fiber-to-the-building (FTTB) and network extension in campus networks, hospitals, shopping malls, and other scenarios.
