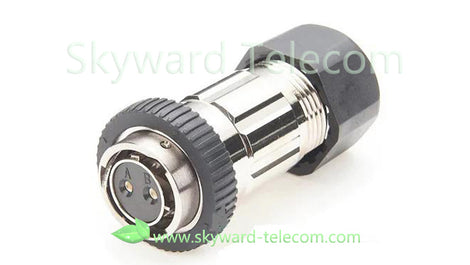

Ericsson RRU Plug DC Connector RNT447
Product Details
This is a 2-pole 10 AWG outdoor rated connector that features a zinc shell construction, provides EMI shielding, is shock & vibration resistant, and uses screw termination contacts making it well suited for field installation.
RRU Power Connector 2 Conductor 10 AWG with EasyBoot
DC 5G RNT 447 Power connector for Ericsson RRU
Ericsson RRU plug DC connector RNT447 19 001
Ericsson RRU plug DC connector RNT447
RNT 447 32/02 Rru Plug Dc Ericsson Connector
Ericsson RRU Plug DC Connector RNT447 19 001 Connector
2 Pin Power Connector RNT447 RRU Plug Ericsson Connector
Applications
To connect Ericsson RRUs (Radio22xx, Radio44xx, RRUS12, etc.) to the power supply system
Features
1. Easy, high-quality installation and maximum network performance.
2. Plug-and-play functionality
Specifications
- Two-position power cable connector for outdoor use;
- Degree of protection IP65;
- Socket screw contact designed for cables from 2.5 to 16 mm²;
- Cable sheath diameter 7 to 21.5 mm;
- Nominal voltage -48V DC;
- Operating voltage ≤ 60V DC;
- Operating temperature range -40 to +85°C;
- Storage temperature range -40 to +90°C;
- Maximum current value - 55A at 60V DC;
The Ericsson RRU plug DC connector RNT447 19 001 is a type of connector that is used in the installation and connection of Remote Radio Units (RRUs) in mobile communication networks. The main use of this connector is to provide a secure and reliable electrical connection between the RRU and the power source.
Specifically, the Ericsson RRU plug DC connector RNT447 19 001 is designed to connect the DC power cable from the RRU to the DC power supply or battery backup system. This connector is used in outdoor installations where the RRU is exposed to the elements and requires a secure and waterproof connection.
The Ericsson RRU plug DC connector RNT447 19 001 is designed to meet industry-standard specifications for waterproofing and electrical performance, ensuring reliable operation in harsh outdoor environments. Its features include a durable construction, low insertion loss, and a high degree of impedance matching, which helps to minimize signal loss and maintain signal quality.
In summary, the Ericsson RRU plug DC connector RNT447 19 001 is a critical component in the installation and connection of Remote Radio Units (RRUs) in mobile communication networks. It provides a secure and reliable electrical connection between the RRU and the power source and is designed to operate reliably in harsh outdoor environments.
