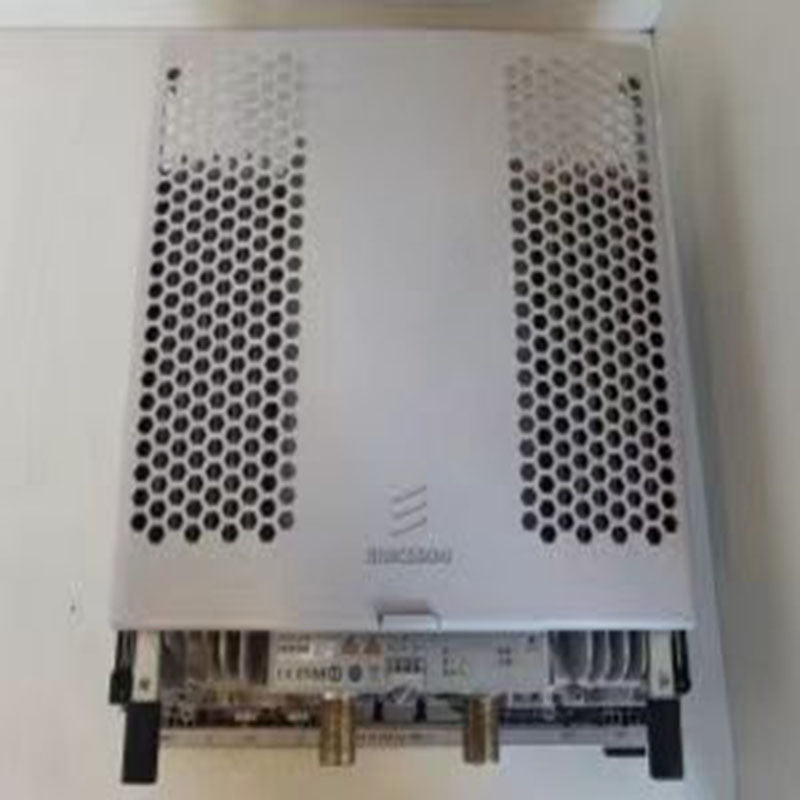

Ericsson Base Station Equipment KRC 161 262/2 RRUS12 B8 RBS6601

Item

Specification

Working band

Frequency band

Receiving band

Transmitting band

Band class 0
(800 MHz)

824 MHz to 849 MHz

869 MHz to 894 MHz

Band class 15
(AWS)

1710 MHz to 1755 MHz

2110 MHz to 2155 MHz

Band class 1
(1900 MHz)

1850 MHz to 1910 MHz

1930 MHz to 1990 MHz

Band class 14
(US PCS 1.9 GHz)

1850 MHz to 1915 MHz

1930 MHz to 1995 MHz

Band class 6
(2 GHz)

1920 MHz to 1980 MHz

2110 MHz to 2170 MHz

Transmitter and receiver

specifications

Frequency band

Receiver sensitivity

Max. transmit power

Band class 0
(800 MHz)

–130 dBm

100 W

Band class 15
(AWS)

–127 dBm

80 W

Band class 1
(1900 MHz)

–127 dBm

80 W

Band class 14
(US PCS 1.9 GHz)

–127 dBm

80 W

Band class 6
(2 GHz)

–127 dBm

80 W

Transmission ports

Max. configuration

Number of available ports

One CMPT (4E1) and two UTRPs

One FE electrical port and one FE optical port

(supporting a maximum of 20 E1/T1 links)

One CMPT (8E1) and two UTRPs

One FE electrical port (supporting a maximum of 24 E1/T1 links)

NOTE
The CMPT (8E1) does not support the ATM transmission.
The CMPT (8E1) does not support transmission over the optical port.
