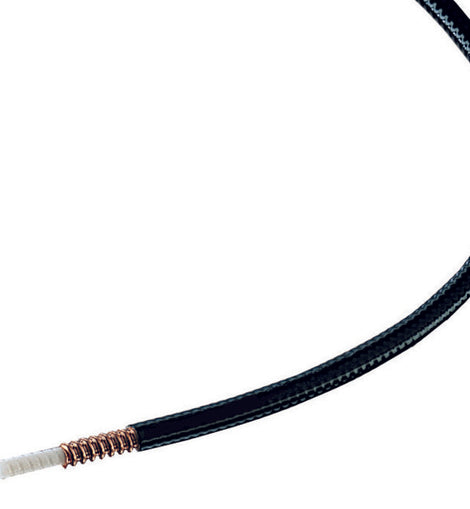

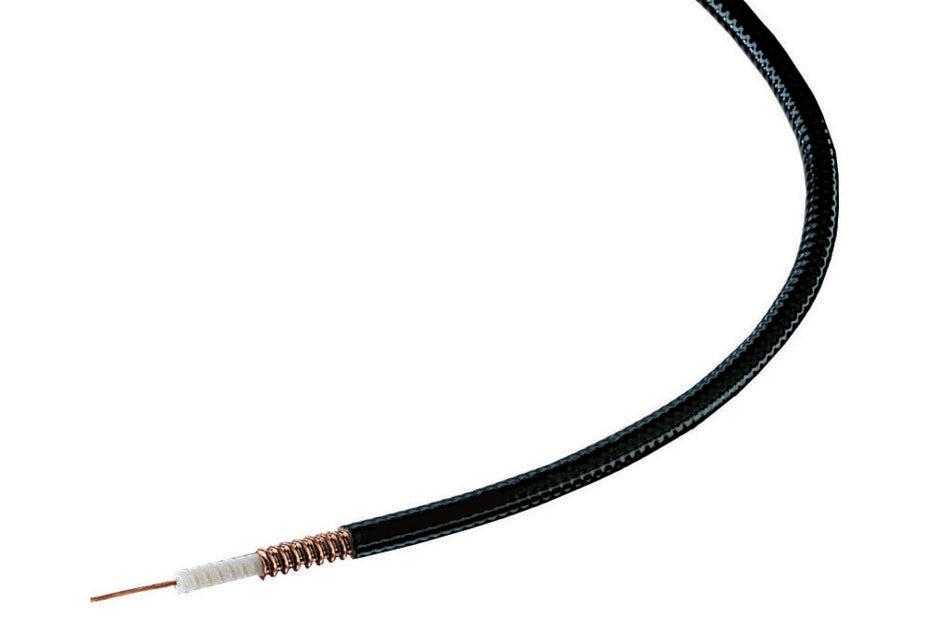

ANDREW FSJ1-50A Superflexible Low Density Foam Coaxial Cable
Features and benefits
Skyward Telecom offers the latest ANDREW compatible products. Low prices, high quality.
FSJ1-50A Superflexible Low Density Foam Coaxial Cable, corrugated copper, 1/4 in, black PE jacket
Product classification
| Product Type | Coaxial wireless cable |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A | MLOC |
General specifications
| Product Number | 887009902/00 | SZ887009902/00 |
| Flexibility | Superflexible |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
Dimensions
| Diameter Over Dielectric | 4.826 mm | 0.19 in |
| Diameter Over Jacket | 7.366 mm | 0.29 in |
| Inner Conductor OD | 1.905 mm | 0.075 in |
| Outer Conductor OD | 6.35 mm | 0.25 in |
| Nominal Size | 1/4 in |
Electrical specifications
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 79.4 pF/m | 24.201 pF/ft |
| dc Resistance, Inner Conductor | 9.843 ohms/km | 3 ohms/kft |
| dc Resistance, Outer Conductor | 7.216 ohms/km | 2.199 ohms/kft |
| dc Test Voltage | 1600 V |
| Inductance | 0.2 µH/m | 0.061 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 5000 V |
| Operating Frequency Band | 1 – 18000 MHz |
| Peak Power | 6.4 kW |
| Velocity | 82 % |
