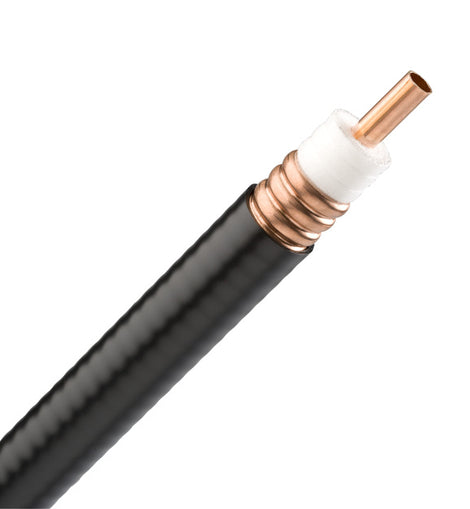

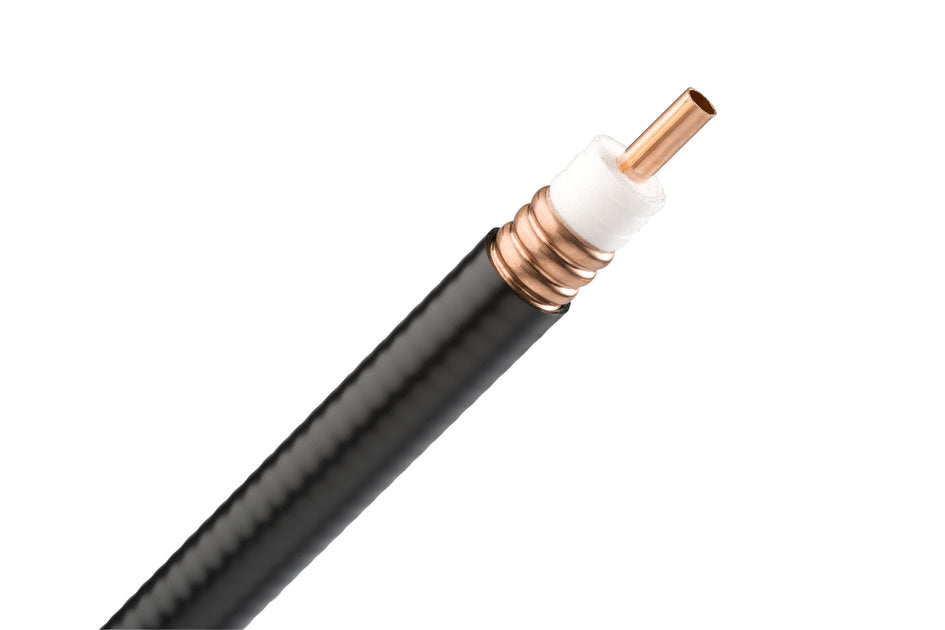

ANDREW AVA5P-50-C Coaxial Cable, corrugated copper, 7/8 in
Features and benefits
Skyward Telecom offers the latest ANDREW compatible products. Low prices, high quality.
AVA5-50 Coaxial Cable, corrugated copper, 7/8 in, black PE jacket
Product classification
| Product Type | Coaxial wireless cable |
| Product Brand | HELIAX® |
| Product Series | AVA5-50 |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Flexibility | Standard |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
| Specification Sheet Revision Level | B |
Dimensions
| Diameter Over Dielectric | 24.13 mm | 0.95 in |
| Diameter Over Jacket | 27.991 mm | 1.102 in |
| Inner Conductor OD | 9.4488 mm | 0.372 in |
| Outer Conductor OD | 25.4 mm | 1 in |
| Nominal Size | 7/8 in |
Electrical specifications
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 73 pF/m | 22.25 pF/ft |
| dc Resistance, Inner Conductor | 1.435 ohms/km | 0.437 ohms/kft |
| dc Resistance, Outer Conductor | 1.116 ohms/km | 0.34 ohms/kft |
| dc Test Voltage | 6000 V |
| Inductance | 0.184 µH/m | 0.056 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 5000 MHz |
| Peak Power | 91 kW |
| Velocity | 91 % |
Our Services
- Cost-effective equipment
- Faster delivery
- Worldwide shipping
- Alternative supply
- Sample service
- Test and warranty
For this model, we have new original, cost-effective compatible, and economical second-hand . We provide you with a variety of choices, the same quality! Each products has been strictly tested to ensure stable performance, worry-free use, and enjoy an efficient experience.
Full range of options: new original quality assurance, compatible models are super value and practical, and second-hand are economical and durable.
Strict quality control: each products is tested before shipment.
Worry-free after-sales: warranty commitment, normal use, and quality problems can be returned or exchanged.
