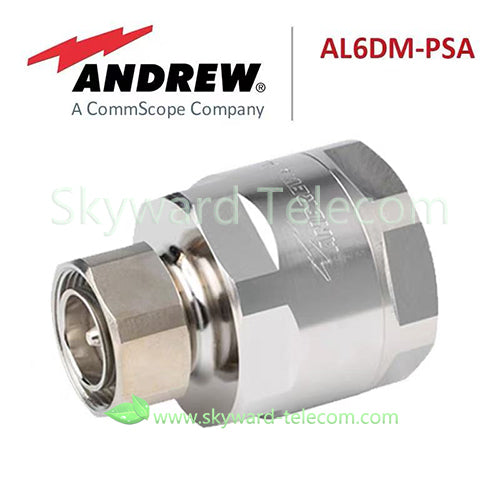

ANDREW AL6DM-PSA 7-16 DIN Male for 1-1/4 in AVA6-50 cable
Features and benefits
Skyward Telecom offers the latest ANDREW compatible products. Low prices, high quality.
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | compatible / HELIAX® | Positive Stop™ |
| Product Series | AVA6-50 | AVA6RK-50 |
General specifications
| Body Style | Straight |
| Cable Family | AVA6-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 70.36 mm | 2.770 in |
| Diameter | 51.31 mm | 2.020 in |
| Nominal Size | 1-1/4 in |
Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 3.0 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.8 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 4000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Shielding Effectiveness | -130 dB |
