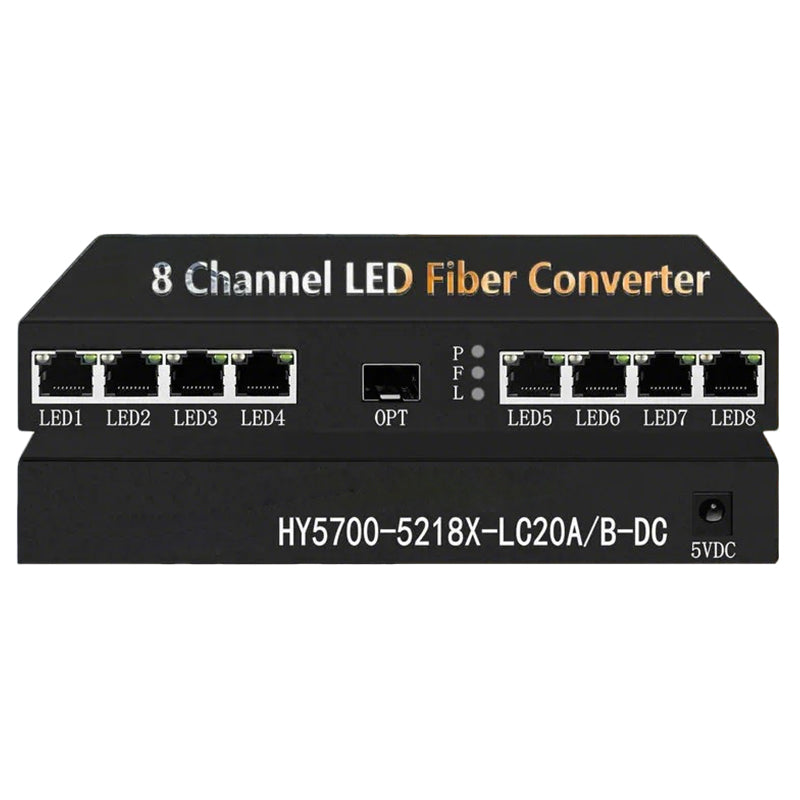

8 Channel LED Fiber Converter (Model HY5700-5218X-LC20A/B-DC)
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Model | HY5700-5218X-LC20A/B-DC |
| Port Configuration | 8×RJ45 Ethernet ports (LED1~LED8) + 1×LC single-fiber optical port (OPT) |
| Transmission Rate | 10/100/1000Mbps auto-negotiation |
| Fiber Type | Single-mode fiber (9/125μm) |
| Transmission Distance | 20km (single-fiber bidirectional) |
| Operating Wavelength | 1310nm/1550nm (WDM wavelength division multiplexing) |
| Power Input | DC 5V |
| Housing Material | Metal housing (excellent heat dissipation and anti-interference) |
| Compatibility | Fully compatible with major brands of LED control cards (e.g., Nova, Linsn, Colorlight) |
Key Features
-
8-Port Multi-Channel Design
Provides 8 RJ45 ports for simultaneous connection of 8 LED control signals, meeting the needs of multi-screen linkage and partition control, while significantly reducing cabling and equipment count.
-
Single-Fiber Bidirectional Transmission
Adopts WDM technology, enabling bidirectional transmission of 8 channels over a single fiber, saving fiber resources and reducing cabling costs.
-
Gigabit Auto-Negotiation
Supports 10/100/1000Mbps auto-negotiation, with RJ45 ports compatible with Fast/Gigabit LED control cards, eliminating the need for manual configuration.
-
Long-Distance Transmission
Single-mode fiber transmission distance up to 20km, meeting the interconnection requirements between large outdoor LED displays and remote control centers.
-
Plug-and-Play
No drivers or complex configurations required; automatically negotiates the operating mode when powered on, reducing deployment difficulty and maintenance costs.
-
Stable and Reliable
The metal housing provides excellent heat dissipation and anti-interference capabilities, supporting link detection and fault alarms to ensure continuous and stable operation of LED display systems.
Main Applications
- Large Outdoor LED Displays: Long-distance transmission of multi-channel control signals for multi-zone outdoor billboards and stadium screens.
- Stage & Events: Linkage control for multiple stage LED backdrops and event displays.
- Commercial Complexes: Centralized control and data transmission for multiple digital signage and advertising screens in shopping malls.
- Transportation Hubs: Unified management and signal transmission for multiple information screens in airports and high-speed rail stations.
