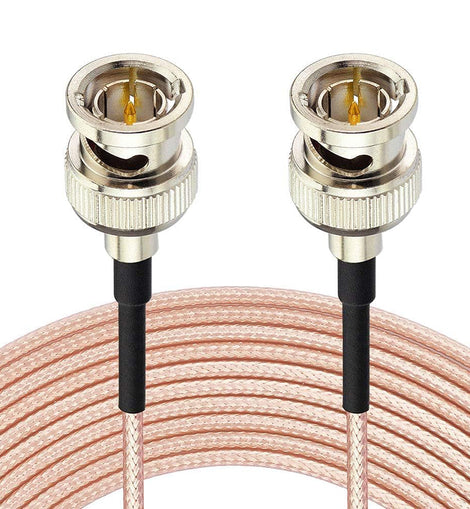

3G/HD-SDI BNC male Coaxial Cable 75-ohm
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Impedance | 75 Ohms (standard for SDI/HD video applications) |
| Cable Type | 75Ω coaxial cable (e.g., RG179/RG59/RG6) |
| Connectors | BNC male (twist-lock design for secure connections) |
| Center Conductor | Pure copper/silver-plated copper (low resistance for signal fidelity) |
| Shielding | High-density braided copper mesh (≥95% coverage) + aluminum foil layer, providing excellent EMI/RFI protection |
| Dielectric | Foam polyethylene/PTFE (low loss for high-frequency signals) |
| Outer Jacket | PVC (flexible and abrasion-resistant, suitable for professional installation) |
| Supported Standards | 3G-SDI, HD-SDI, SD-SDI, ASI |
| Transmission Distance | Up to 100 meters (RG6) / 50 meters (RG179) for 3G-SDI signals |
| Bandwidth | Supports up to 3GHz, compatible with 1080p 60fps and 4K signal transmission |
Key Features
- Precision 75Ω Impedance Matching – Strictly matches the 75-ohm characteristic impedance of SDI equipment, preventing signal reflection and ensuring distortion-free HD video.
- High-Density Shielding – Multi-layer shielding effectively isolates electromagnetic interference (EMI) and radio frequency interference (RFI), ideal for high-interference environments such as studios and live broadcast vehicles.
- BNC Twist-Lock Connectors – The screw-on design ensures a secure connection to prevent accidental disconnection, while professional-grade gold-plated contacts enhance signal conductivity and corrosion resistance.
- Low-Loss High-Frequency Transmission – Premium dielectric and conductor design maintains low attenuation even at 3GHz, supporting long-distance transmission of 3G-SDI HD signals.
- Professional Scene Adaptability – The cable is flexible for routing in tight spaces such as equipment racks and switchers, with a durable, tensile-resistant jacket to withstand intensive professional use.
Main Applications
- Film Production & Live Broadcasting: Connects cameras, switchers, monitors, and recorders to transmit 3G/HD-SDI high-definition video signals.
- Broadcasting & Studios: Used for signal distribution and transmission in TV stations and studios, ensuring broadcast-quality visuals.
- Security Surveillance: Links high-definition surveillance cameras to DVR/NVR systems for stable HD monitoring signal transmission.
- Professional Equipment Interconnection: Adapts to high-frequency signal transmission for test equipment such as oscilloscopes and signal generators.
