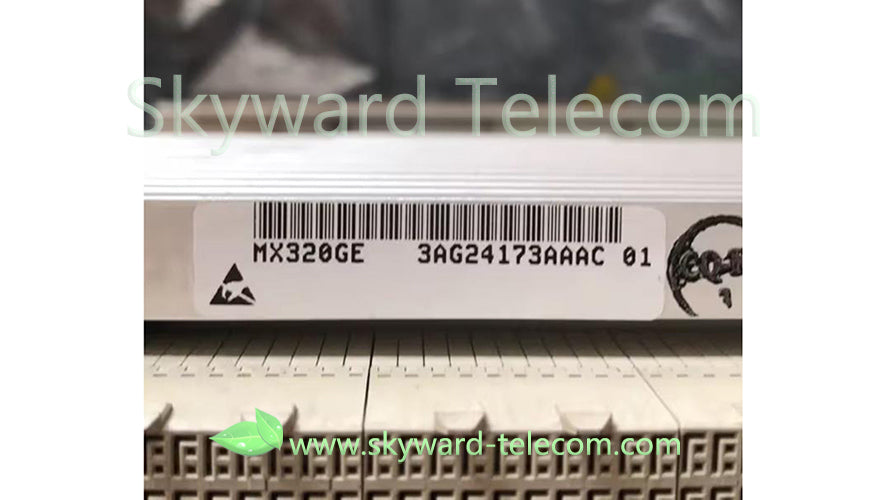

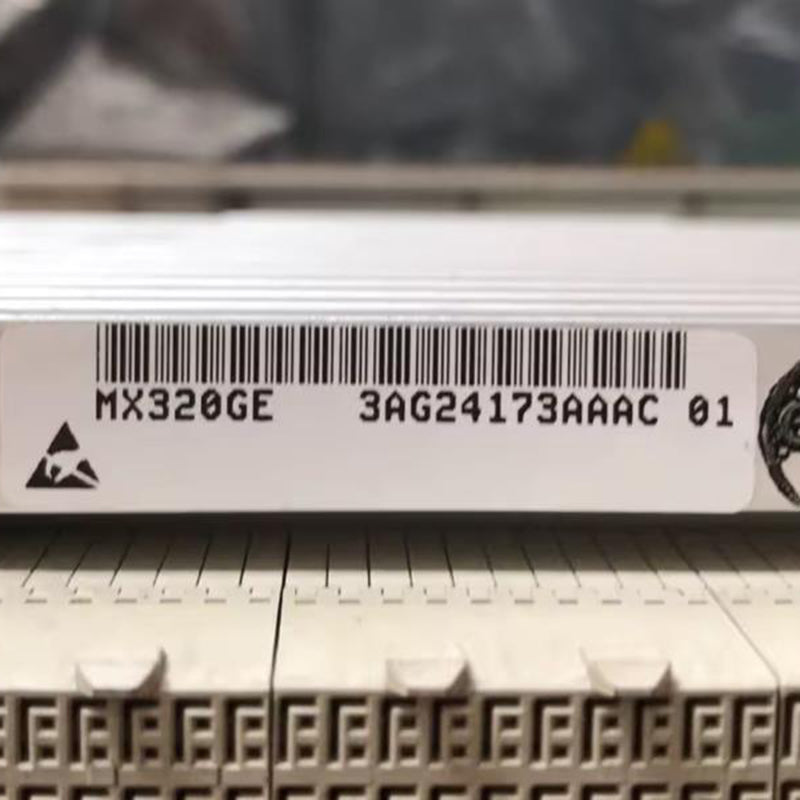

3AG24173AA – Alcatel MULTI-CHAN TRSPDR CD 1678 MCC MX320GE

  Descriptions

3AG24173AA – Alcatel MULTI-CHAN TRSPDR CD 1678 MCC MX320GE is a multi-channel transport cross-connect matrix with a capacity of 320 Gbit/s45. It serves as the core switching fabric for the 1678 MCC system, handling high-order (e.g., VC-4) and low-order (e.g., VC-12) virtual container switching.

Click on email or WhatsApp. Online customer service.

  Key Features

• Model: 3AG24173AA (functional designation: MX320GE
• Platform: Alcatel 1678 MCC (Metro Core Connect), a multi-service transport platform for SDH/SONET, OTN, and data switching
• Key Role: Provides non-blocking switching for aggregating and routing traffic in metro and core networks, supporting services from SDH/SONET to Ethernet and OTN
• Capacity: 320 Gbit/s (equivalent to 2,000 STM-1/STS-3 channels), which is half the capacity of the larger MX640GE matrix card
• Matrix Type——High-Order (HO): Supports VC-4/STS-3c/VC-4-64c/ODU2 cross-connections
• Matrix Type——Low-Order (LO): Optional, with scalability for finer-grain switching (e.g., VC-12)
• Blocking: Non-blocking architecture with broadcast and multicast capabilities
• Compatibility: Works with all 1678 MCC service boards, including PDH, SDH, Ethernet, and OTN interfaces
• Chassis Slot: Occupies slots 10–11 in the 1678 MCC subrack (reserved for matrix boards)
• Redundancy: Supports 1+1 protection (dual MX320GE cards for failover), ensuring high availability
• Software Management: Configured via Alcatel’s 1350 NM system for granular control over cross-connections and network management
• Scalability: Part of a scalable architecture that can expand to larger capacities (e.g., up to 5.12 Tbit/s with future upgrades)
• Energy Efficiency: Compact design reduces power consumption per Gbit/s, aligning with modern efficiency standards
• Standards Compliance: Meets ITU-T G.709 (OTN), ANSI SONET, and ETSI SDH specifications

  Use Cases

• Core Aggregation: Handles large-scale traffic aggregation in metro/core networks (e.g., STM-64/OC-192 links)
• Multi-Layer Switching: Supports SDH/SONET, OTN, and Ethernet simultaneously, enabling seamless integration of legacy and modern services
• ASON/GMPLS Networks: Enables dynamic circuit provisioning for intelligent optical networks with automated resource allocation and recovery

The 3AG24173AA MX320GE is a critical component for high-capacity transport in the 1678 MCC platform, offering 320 Gbit/s of non-blocking switching capacity. Its versatility in handling multi-layer traffic and integration with dynamic control planes like ASON/GMPLS makes it ideal for evolving metro and core networks. For deployment, ensure compatibility with existing chassis and software, and consult official documentation for detailed guidelines. Let me know if you need help with sourcing or configuration!
