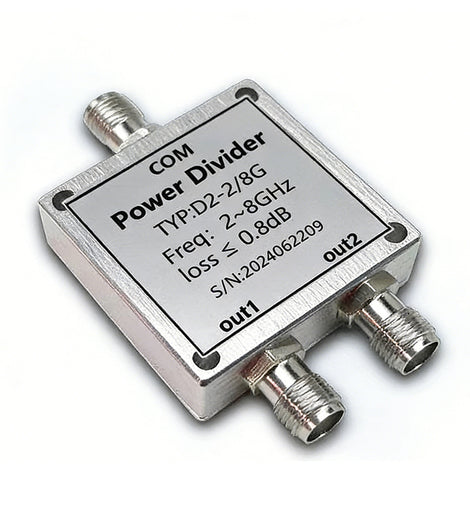

2-8GHz SMA 2-Way Power Divider (Model D2-2/8G)
Product Overview
Key Specifications
| Parameter | Details |
|---|---|
| Model | D2-2/8G |
| Frequency Range | 2 ~ 8 GHz |
| Insertion Loss | ≤ 0.8 dB (excluding the theoretical 3 dB power split loss) |
| Configuration | 2-way (1 input COM port, 2 output ports: out1, out2) |
| Connector Type | SMA female (all ports) |
| VSWR | Typically ≤ 1.3:1 across the operating band |
| Isolation | Typically ≥ 20 dB between output ports |
| Impedance | 50 Ω |
| Housing | Aluminum alloy shielded case |
Core Features
- Wideband Performance: Covers the 2–8 GHz band, compatible with S-band (2–4 GHz) and C-band (4–8 GHz) for applications like Wi-Fi, 5G sub-6GHz, and radar.
- Low Insertion Loss: Specifies ≤0.8 dB additional loss, ensuring minimal signal degradation during distribution.
- High Isolation: Maintains excellent isolation between output ports to prevent signal interference and reflections.
- Standard SMA Interface: Universal SMA female connectors for easy integration with most RF test equipment, antennas, and radios.
- Low VSWR: Ensures excellent impedance matching, minimizing signal reflection for reliable signal transmission.
Typical Applications
- Wireless Communication Systems: Distribute RF signals to multiple antennas, access points, or test instruments.
- Wi-Fi/5G Network Testing: Split signals for multi-device testing in the 2.4 GHz/5 GHz/6 GHz bands.
- Radar & Satellite Systems: Signal distribution in S-band/C-band radar and satellite ground station applications.
- RF Lab Testing: Signal splitting for multi-channel RF measurement setups.
- Antenna Feeding Networks: Power multiple antennas from a single RF source.
Technical Notes
- Theoretical Loss: A 2-way power divider inherently splits the input power by half, resulting in a 3 dB theoretical loss at each output port. The ≤0.8 dB rating represents the component's additional insertion loss.
- Power Handling: Suitable for low-to-medium power RF applications (typical 30W CW, dependent on design).
- Wilkinson Structure: Features a Wilkinson power divider architecture with isolation resistors, ensuring high port isolation and impedance matching.
Compatibility
- Signal generators, spectrum analyzers, and network analyzers
- Wi-Fi routers, 5G small cells, and IoT gateways
- S-band/C-band antennas and RF amplifiers
- Radar systems and satellite communication ground stations
