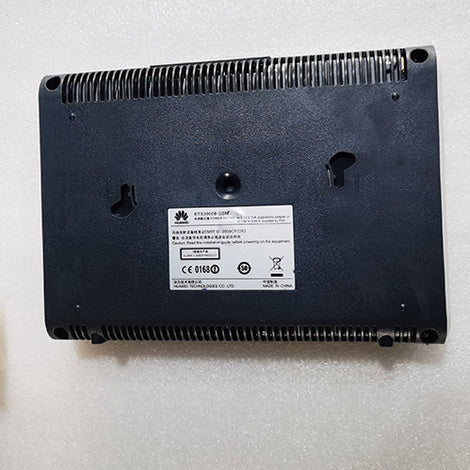

BTS3900B GSM Genuine Products

BTS3900B GSM Genuine Products

BTS3900B GSM refers to the BTS3900B model GSM standard indoor macro base station. As a core access device launched for the mobile communication field, it is specifically designed for GSM networks and can stably provide voice, SMS, and basic data transmission services. With its high integration and reliability, it is widely used in various GSM network construction scenarios. The detailed information is as follows:

I. Core Hardware & Performance Parameters

(1) Basic Configuration

It inherits the compact cabinet design of the BTS3900 series, with typical dimensions of 900mm×600mm×450mm. The weight of the empty cabinet is ≤45kg, and the fully configured weight (including 1 BBU, 6 RF modules, etc.) is ≤135kg, effectively saving equipment room installation space. The hardware core consists of a Baseband Processing Unit (BBU) and RF modules. A single cabinet can accommodate up to 2 BBU3900 baseband units and 6 RF modules, supporting a maximum of 12 GSM-R carriers, which can fully meet the network capacity requirements of medium-to-high density areas.

(2) RF & Signal Performance

It supports mainstream GSM frequency bands such as EGSM (880-915MHz) and ER-GSM (873-880MHz). The transmit power is configured according to different frequency bands: for example, the 918-925MHz band can reach 2×60W, and the 925-960MHz band can reach 2×80W. It exhibits excellent receiving sensitivity: approximately -112.5dBm to -113.4dBm for single-antenna reception, and as low as -115.5dBm to -116.4dBm for dual-antenna reception. This significantly enhances weak signal receiving capability and improves network coverage quality.

(3) Power Supply Specifications

It adopts -48V DC power supply, with a voltage adaptation range of -38.4V to -57V, complying with general power supply standards for communication equipment and adapting to the stable power supply environment of equipment rooms.

II. Core Functions & Advantages

(1) High Integration & Low Power Consumption

The RF module adopts an integrated design of duplexer and TRU (Transceiver Unit), greatly improving the integration of RF components and reducing equipment redundancy. Meanwhile, it supports energy-saving functions such as software-controlled board power-on/off and RF channel shutdown, which can dynamically adjust power according to network service load, reducing energy consumption costs during operation and aligning with the concept of green communication.

(2) Compatibility & Evolvability

Although focusing on the GSM standard, it is compatible with same-series communication equipment and reserves the capability of smooth evolution to LTE networks. Operators do not need to carry out large-scale transformations of the equipment room architecture; through software upgrades and module adjustments, they can adapt to subsequent network upgrade needs, reducing investment in duplicate construction.

(3) High Reliability

The equipment has undergone rigorous environmental adaptability tests, enabling it to adapt to common working conditions such as temperature changes in equipment rooms and possess stable continuous operation capability. Its standardized hardware interfaces and modular design also facilitate quick replacement of faulty components during operation and maintenance, shortening network downtime.

Click on email or WhatsApp. Online customer service.

Our Services

Cost-effective equipment
Faster delivery
Worldwide shipping
Alternative supply
Sample service
Test and warranty

For this model, we have new original, cost-effective compatible, and economical second-hand . We provide you with a variety of choices, the same quality! Each products has been strictly tested to ensure stable performance, worry-free use, and enjoy an efficient experience. Full range of options: new original quality assurance, compatible models are super value and practical, and second-hand are economical and durable. Strict quality control: each products is tested before shipment. Worry-free after-sales: warranty commitment, normal use, and quality problems can be returned or exchanged.

About Us

Skyward Telecom also known as Skywardtel, it was established in 2009. From the beginning to the end, we have been based on the
motto of integrity，Our mission is to help engineers and businesses overcome the challenges of acquiring high-quality, low-cost
communication products.And has provided network security and computer asset management solutions for users in more than 80
countries around the world, and has been recognized by the market.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2009,sell to Northern Europe(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Oceania(5.00%),Central America(5.00%),Africa(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%). There are total about 80-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
All products are sold only after passing professional technical testing;

3.what can you buy from us?
Brand new, unopened switches, routers, servers, workstations, and other computer peripherals.
Brand new or refurbished equipment and circuit boards.BBU\RRU.
Brand new or custom-made communication cables (coaxial cables, fiber optic cables, network cables, power cords, AISG cables, etc).
Brand new or custom-made connectors.SMA connector, BNC connetor, RF connector, etc.
Brand new or custom-made cooling fans
Base station related accessories.
Weighing controller,Computer software,computer hardware,Weighing transmitter

4. why should you buy from us not from other suppliers?
Best quality！ Lowest price！ Quality assurance, honest transactions! Received high praise from numerous customers！ Leading through
exceptional service and creative solutions to help our partners succeed！
Skyward Telecom establish our foundation on integrity, win trust with professionalism, and warm hearts with service！

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Koren,Hindi,Italian

Welcome to contact us to get super surprising prices!

BTS3900B GSM Genuine Products

Related products

new!

$0.00

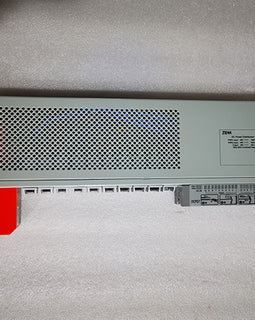

ZTE DCPD7 DC Power Distribution Unit

ZTE DCPD7 is a DC Power Distribution Unit (PDU) launched by ZTE, specifically designed for commun...

ZTE DCPD7 is a DC Power Distribution Unit (PDU) launched by ZTE, specifically designed for communication network scenarios. It provides stable DC power distribution for communication equipment such as BBUs and RRUs. Below is a detailed introduction to its core parameters and features: 1. Basic Installation & Appearance The device is compatible with standard 19-inch rack mounting, occupying only 1U of space. Its dimensions are 482.6mm × 43.6mm × 118mm. It adopts front-facing wiring, elimi...

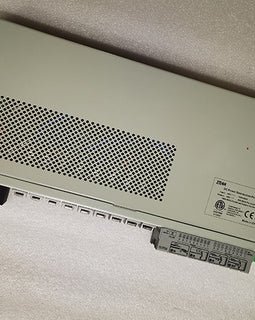

DCPD6 48V 100A DC Power Distribution Unit
