FUFBD MM OD Fiber LC OD-LC OD Dual 200 M 473306A
FUFBD MM OD Fiber LC OD-LC OD Dual 200 M 473306A, RFM/RRH,9957591 Nokia NSN Dual, HF, OM2 Flexible Ended
FUFBA MM OD Fiber LC OD-LC OD is 30m, used in RFM/RRH applications, the optical cable is OM2, flexible-ended Uni boot NSN, compatible with Nokia 473306A. At both sides, LC duplex connectors adopt with flexible tubes, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.
Application
- Multi-purpose Outdoor.
-
For connection between distribution box and RRH.
-
Deployment in Remote Radio Head cell tower applications.
Features
1.Easily add/install jumper cables for a future expansion.
2. Low insertion loss and added loss.
3.Height of attenuation.
4. Flexibility with small bending radius and excellent cable routing properties.
5. End-face geometry and quality superior than IEC and Telcordia standards.
6. The material in the jumper cable are all-weather and UV-resistant.
7. IP67 water and dust protection.
8. Mechanical performance: IEC 61754-20 standard.
9. RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Note | |
|
LC |
IEC 61754-20 |
Single mode duplex |
UPC: Blue connectors |
| Multimode duplex | UPC: Grey Connectors | ||
Dimensional Diagrams
-
NSN boot 180°dulex LC Fiber Optic Jumper
-
NSN boot 90°dulex LC Fiber Optic Jumper
-

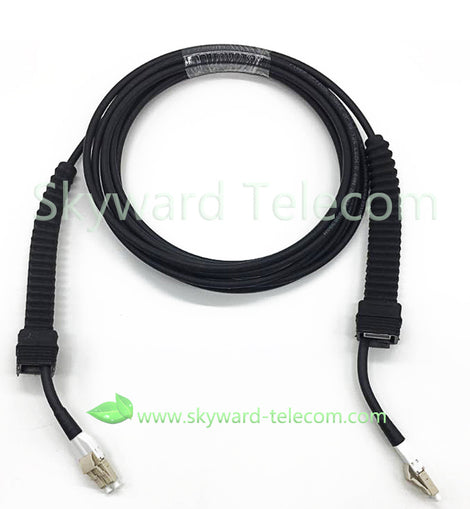

Flexible LC OD - LC OD Fiber Optic Jumper
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
Cable Structure- No Armoureed
|
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 5.0±0.2 | 30 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~~ +70 |
Cable Parameters- Armored
|
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D | -20~~+70 |
