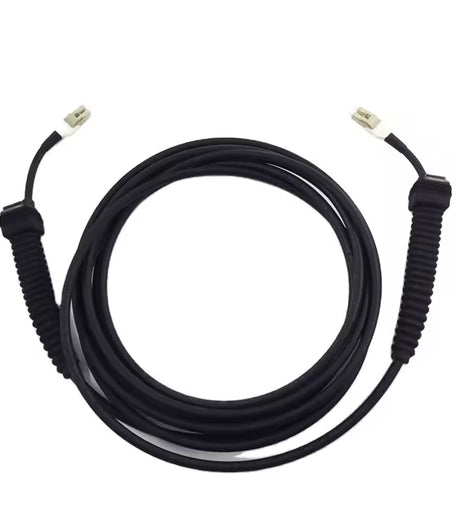

DLC/OD-DLC/OD-MM-5.0 Fiber Optic Patch Cord

Click on email or WhatsApp. Online customer service.

Product Description

• Dual Waterproof DLC/OD Interfaces: Both ends adopt ODVA standard DLC/OD interfaces, with a sealed and sturdy housing that achieves IP65-IP67 protection level. It effectively resists dust intrusion, short-term water immersion, salt mist and humidity, ensuring reliable connection in outdoor harsh conditions. The bayonet locking structure prevents connector loosening due to pulling or vibration during use.
• Multimode Fiber Core Performance: Equipped with multimode fiber compatible with OM1-OM5 grades, with core/cladding dimensions of 50/125μm or 62.5/125μm. It supports working wavelengths of 850nm and 1310nm, and uses high-quality ceramic ferrules, with insertion loss ≤0.3dB and return loss ≥35dB, minimizing signal attenuation and reflection for stable duplex communication.
• 5.0mm Cable Structure: The cable outer sheath is made of UV-resistant PE/TPU material (LSZH optional), which is wear-resistant and compression-resistant. The internal structure contains water-blocking aramid yarn to enhance tensile strength and water-blocking capacity. The dynamic bending radius is 20× cable diameter and the static bending radius is 10× cable diameter, adapting to complex installation scenarios such as tower hoisting and wall laying.
• Environmental Adaptability & Customization: The operating and storage temperature range is -40℃~+85℃, which can withstand extreme temperature changes in outdoor environments. The cable length supports flexible customization from 1m to 300m, with length tolerance controlled within 10cm, fully meeting the distance requirements of different outdoor projects.

Main Applications

1. FTTA Base Station Outdoor Link Connection: The core application scenario, used to connect Remote Radio Units (RRUs) on communication towers or between outdoor RRUs and near-tower equipment. The dual waterproof interfaces adapt to the open-air harsh environment of base stations, ensuring stable signal transmission for 4G/5G base station communication links.
2. Outdoor Monitoring & Industrial Site Networking: Suitable for connecting outdoor high-definition surveillance cameras, industrial switches and edge computing devices in factory parks, ports, mines and other scenarios. It resists rain, dust, electromagnetic interference and site vibration, building a reliable short-distance optical transmission network for outdoor monitoring and industrial data transmission.
3. Outdoor Telecom Backbone Extension: Used in the extension and interconnection of outdoor telecom backbone networks, such as connecting outdoor optical distribution boxes, microwave relay equipment and other devices. The waterproof and UV-resistant cable ensures the continuity of signal transmission in long-term outdoor deployment, complying with telecom industry related standards.
4. Outdoor Campus/Community Network Deployment: For large-scale outdoor scenarios such as university campuses, industrial parks and residential communities, it is used to connect outdoor optical access devices between buildings. The customizable length adapts to different building spacing requirements, supporting high-speed data exchange for outdoor public facilities and terminal equipment.
