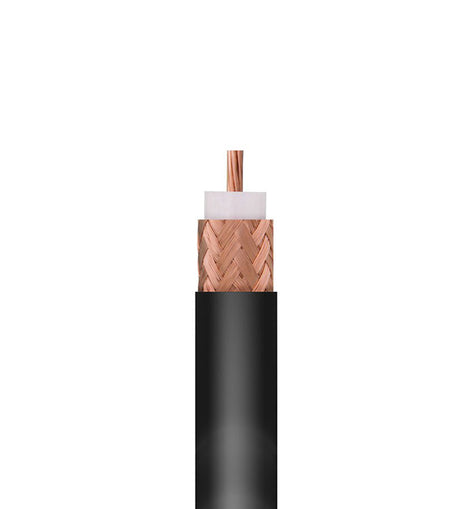

RG213 Flexible Coax Cable 50 Ohm PVC Jacket
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Impedance | 50 Ohms |
| Nominal Velocity of Propagation (VP) | 66% |
| Capacitance | 29.5 pF/ft (96.8 pF/m) |
| Center Conductor | Stranded Tinned Copper (19 x 24 AWG) |
| Dielectric | Solid Polyethylene (PE) |
| Shielding | 95% Tinned Copper Braided Shield |
| Outer Jacket | PVC (Polyvinyl Chloride) |
| Max Operating Voltage | 5,000 V RMS (Peak) |
| Operating Temperature | -20°C to +80°C (Standard PVC) |
| Attenuation (Loss) | ~0.27 dB per 10 meters at 400 MHz (Low loss for its class) |
| Weight | Approx. 13 kg per 100 meters |
Physical Characteristics
- Nominal OD (Outer Diameter): 10.2 mm (0.405 inches)
- Bending Radius: 102 mm (4 inches) static; 204 mm (8 inches) dynamic.
- Flexibility: Semi-Flexible. While the stranded core allows for some movement, the thick dielectric makes it relatively stiff and difficult to bend sharply.
Common Connector Types
- PL-259 (UHF): The de facto standard connector for HAM radio and CB radio equipment.
- N-Type (Male/Female): The professional standard for VHF/UHF base stations and Wi-Fi antennas.
- SO-239: The chassis-mount version of the PL-259, typically found on the back of radios.
Key Features
- Low Signal Loss: Provides much better performance than RG58 or RG8X, making it suitable for runs up to 50-70 meters depending on frequency.
- High Power Handling: Capable of handling high transmitter power levels (up to ~1.5 kW at VHF frequencies) without arcing or overheating.
- Stranded Conductor: The stranded center conductor provides mechanical durability and flexibility, making it less prone to breakage than solid-core cables during installation.
- Economical Performance: It offers performance very close to the premium LMR-400 cable but at a lower cost, though it has higher loss than LMR-400 at higher frequencies (UHF/4GHz).
Applications
- Amateur Radio (HAM): The most popular cable for connecting HF, VHF, and UHF radios to outdoor antennas.
- Base Stations: Used in commercial two-way radio systems (police, fire, taxi) to connect repeaters to antennas.
- Wi-Fi & WLAN: Suitable for short to medium runs (under 30m) connecting access points to high-gain antennas.
- RF Test Rigs: Used in laboratories for high-power signal transmission.
Important Note: RG213 vs. LMR-400
- RG213: Uses solid polyethylene dielectric. Good performance, economical, widely available. Slightly higher loss than LMR-400 at UHF.
- LMR-400: Uses foam polyethylene dielectric. Lower loss, better shielding, higher price.
- Recommendation: For HF and VHF (30-150 MHz), RG213 is excellent and saves money. For UHF or 4G/5G (above 400 MHz), LMR-400 is recommended for longer runs to minimize signal loss.
