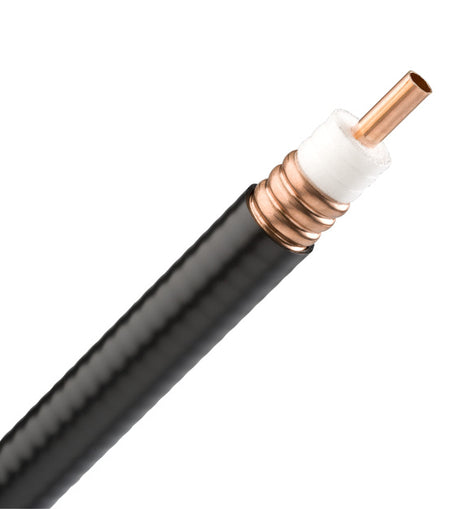

ANDREW AVA5RK-50 Coaxial Cable, corrugated copper, 7/8 in
Features and benefits
Skyward Telecom offers the latest ANDREW compatible products. Low prices, high quality.
Coaxial Cable, corrugated copper, 7/8 in, black non-halogenated, fire retardant polyolefin jacket B2ca- s1a, d2,a1
Product classification
| Product Type | Coaxial wireless cable |
| Product Brand | compatible/HELIAX® |
| Product Series | AVA5-50 |
General specifications
| Product Number | 520097502/00 | SZ520097502/00 |
| Flexibility | Standard |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
| Specification Sheet Revision Level | B |
Dimensions
| Diameter Over Dielectric | 24.13 mm | 0.95 in |
| Diameter Over Jacket | 27.94 mm | 1.1 in |
| Inner Conductor OD | 9.4488 mm | 0.372 in |
| Outer Conductor OD | 25.4 mm | 1 in |
| Nominal Size | 7/8 in |
Electrical specifications
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 73.2 pF/m | 22.311 pF/ft |
| dc Resistance, Inner Conductor | 1.435 ohms/km | 0.437 ohms/kft |
| dc Resistance, Outer Conductor | 1.116 ohms/km | 0.34 ohms/kft |
| dc Test Voltage | 6000 V |
| Inductance | 0.184 µH/m | 0.056 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 5000 MHz |
| Peak Power | 91 kW |
| Velocity | 91 % |
