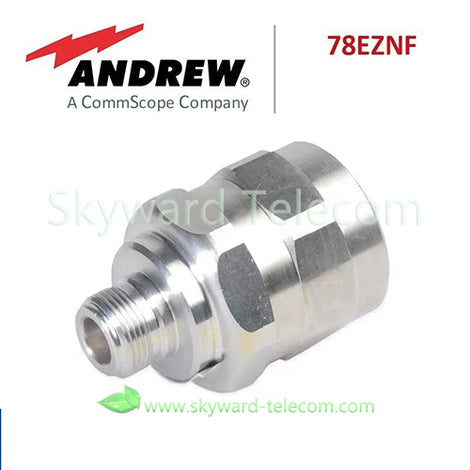

ANDREW 78EZNF N Female connector
Features and benefits
Type N Female EZfit® for 7/8 in FXL-780, AVA5-50, and AVA5-50FX cable
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | compatible/EZfit® |
| Product Series | AVA5-50 | AVA5-50FX | AVA5RK-50 |
General specifications
| Body Style | Straight |
| Cable Family | AVA5-50 | AVA5-50FX | FXL-780 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 52.07 mm | 2.050 in |
| Diameter | 37.08 mm | 1.460 in |
| Nominal Size | 7/8 in |
Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5000 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
