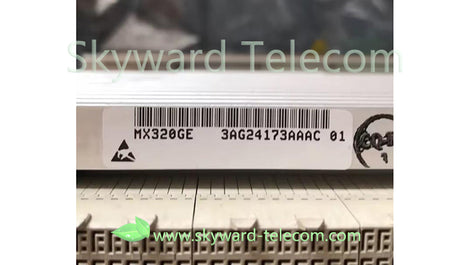

3AG24173AA – Alcatel MULTI-CHAN TRSPDR CD 1678 MCC MX320GE

  Descriptions

3AG24173AA – Alcatel MULTI-CHAN TRSPDR CD 1678 MCC MX320GE is a multi-channel transport cross-connect matrix with a capacity of 320 Gbit/s45. It serves as the core switching fabric for the 1678 MCC system, handling high-order (e.g., VC-4) and low-order (e.g., VC-12) virtual container switching.

Click on email or WhatsApp. Online customer service.

  Key Features

• Model: 3AG24173AA (functional designation: MX320GE
• Platform: Alcatel 1678 MCC (Metro Core Connect), a multi-service transport platform for SDH/SONET, OTN, and data switching
• Key Role: Provides non-blocking switching for aggregating and routing traffic in metro and core networks, supporting services from SDH/SONET to Ethernet and OTN
• Capacity: 320 Gbit/s (equivalent to 2,000 STM-1/STS-3 channels), which is half the capacity of the larger MX640GE matrix card
• Matrix Type——High-Order (HO): Supports VC-4/STS-3c/VC-4-64c/ODU2 cross-connections
• Matrix Type——Low-Order (LO): Optional, with scalability for finer-grain switching (e.g., VC-12)
• Blocking: Non-blocking architecture with broadcast and multicast capabilities
• Compatibility: Works with all 1678 MCC service boards, including PDH, SDH, Ethernet, and OTN interfaces
• Chassis Slot: Occupies slots 10–11 in the 1678 MCC subrack (reserved for matrix boards)
• Redundancy: Supports 1+1 protection (dual MX320GE cards for failover), ensuring high availability
• Software Management: Configured via Alcatel’s 1350 NM system for granular control over cross-connections and network management
• Scalability: Part of a scalable architecture that can expand to larger capacities (e.g., up to 5.12 Tbit/s with future upgrades)
• Energy Efficiency: Compact design reduces power consumption per Gbit/s, aligning with modern efficiency standards
• Standards Compliance: Meets ITU-T G.709 (OTN), ANSI SONET, and ETSI SDH specifications

  Use Cases

• Core Aggregation: Handles large-scale traffic aggregation in metro/core networks (e.g., STM-64/OC-192 links)
• Multi-Layer Switching: Supports SDH/SONET, OTN, and Ethernet simultaneously, enabling seamless integration of legacy and modern services
• ASON/GMPLS Networks: Enables dynamic circuit provisioning for intelligent optical networks with automated resource allocation and recovery

The 3AG24173AA MX320GE is a critical component for high-capacity transport in the 1678 MCC platform, offering 320 Gbit/s of non-blocking switching capacity. Its versatility in handling multi-layer traffic and integration with dynamic control planes like ASON/GMPLS makes it ideal for evolving metro and core networks. For deployment, ensure compatibility with existing chassis and software, and consult official documentation for detailed guidelines. Let me know if you need help with sourcing or configuration!

  Other Boards we can provide:

Brand	Series	Description	PN
NOKIA/Alcatel-lucent	1626 LM	ESC1000	3AL94304AB
NOKIA/Alcatel-lucent	1626 LM	TRBC1111	3AL94452EA
NOKIA/Alcatel-lucent	1626 LM	TRBD1121	3AL94207EC
NOKIA/Alcatel-lucent	1626 LM	ESCT1000	3AL94304AA
NOKIA/Alcatel-lucent	1642 EM	MU48 chassis	3AL97081AC
NOKIA/Alcatel-lucent	1660SM	MATRIX-N/1	3AL78848BA
NOKIA/Alcatel-lucent	1642 EM	DC48B	3AL97042AB
NOKIA/Alcatel-lucent	1642 EM	FB FAN	3AL97043AC
NOKIA/Alcatel-lucent	1642 EM	MB4-1	3AL97273AA
NOKIA/Alcatel-lucent	1642 EM	SYNTH16	3AL98038AD
NOKIA/Alcatel-lucent	1642 EM	SE1B28	3AL97078AC
NOKIA/Alcatel-lucent	1642 EM	SE1B8	3AL97078AD
NOKIA/Alcatel-lucent	1642 EM	ES1-3FE	3AL97194AB
NOKIA/Alcatel-lucent	1642 EM	ES1-8FE	3AL97165AC
NOKIA/Alcatel-lucent	1642 EM	ES1-8FE	3AL97165BA
NOKIA/Alcatel-lucent	1642 EMUX	DE1B32	3AL97198AA
NOKIA/Alcatel-lucent	1642 EMUX	OT1B1	3AL97083BA
NOKIA/Alcatel-lucent	1642 EM	OT1B1N	3AL97083CA
Alcatel	1678 MCC	MX320GE	3AG24173AA
Alcatel	1678 MCC	PSF Power Supply Filter	3AL81502AA
Alcatel	1678 MCC	MX640GE	3AL81429AA
Alcatel	1678 MCC	FAN	3AL81205AA
Alcatel	1678 MCC	P8S16 STM-16/OC-48 Board	3AG24175AA
Alcatel	1678 MCC	P4S64X	3AG24161AA
Alcatel	1678 MCC	FLCCONGI Monitor Board	3AG24102AB
Alcatel	1678 MCC	FLC SERVICE ENH	3AG24103AB
Alcatel	1626 LM	ESC1000	3AL94304AB
Alcatel	1626 LM	TRBC1111	3AL94452EA
Alcatel	1626 LM	TRBD1121	3AL94207EC
Alcatel	1626 LM	ESCT1000	3AL94304AA
Alcatel	1678 MCC	P4S64X	3AG24161AB
Alcatel	1678 MCC	P2S64X STM-64 OC-92	3AG24214AB
