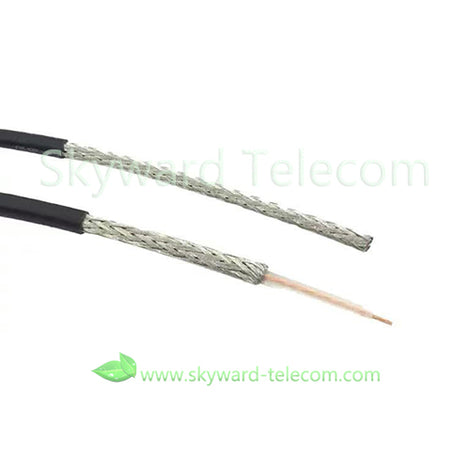

RG174 Flexible Coax Cable 50 Ohm PVC Jacket
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Impedance | 50 Ohms |
| Nominal Velocity of Propagation (VP) | 66% |
| Capacitance | 29.5 pF/ft (96.8 pF/m) |
| Center Conductor | Solid Copper or Tinned Copper (20 AWG) |
| Dielectric | Solid Polyethylene (PE) |
| Shielding | 90% Tinned Copper Braided Shield |
| Outer Jacket | PVC (Polyvinyl Chloride) |
| Max Operating Voltage | 1,500 V RMS |
| Operating Temperature | -20°C to +80°C (Limited by PVC jacket) |
| Attenuation (Loss) | ~1.2 dB per 10 meters at 400 MHz |
| Weight | Approx. 1.3 kg per 100 meters |
Physical Characteristics
- Nominal OD (Outer Diameter): 2.95 mm (0.116 inches)
- Bending Radius: 30 mm (1.2 inches) static; 60 mm (2.4 inches) dynamic.
- Flexibility: Moderate flexibility. The solid core makes it somewhat stiff and prone to "memory" (holding its shape after bending).
Common Connector Types
- SMA (SubMiniature version A): The most common connector for Wi-Fi, GPS, and cellular antennas.
- BNC: Used for test instruments and some radio communications.
- MCX / MMCX: Small push-on connectors used in compact devices like laptops and USB modems.
- TNC: Threaded version of BNC, often used in outdoor GPS antennas.
Key Features
- Cost-Effective: One of the least expensive 50-ohm cables available, making it ideal for high-volume commercial applications.
- Solid Core Stability: The solid center conductor provides a stable electrical path, making it suitable for stationary installations.
- Standardized Performance: Meets standard RF requirements for impedance matching and signal transfer in low-power systems.
- PVC Durability: The PVC jacket is durable against abrasion in typical indoor environments.
Applications
- GPS Antennas: Very commonly used as the "pigtail" cable connecting the GPS antenna module to the receiver.
- Wi-Fi & Bluetooth: Used inside routers, access points, and IoT devices to connect circuit boards to antennas.
- Test Leads: Used in laboratories for short connections between instruments and devices under test.
- Consumer Electronics: Found in remote controls, wireless microphones, and RFID systems.
Important Note: RG174 vs. RG316
- RG174: Solid core, PVC jacket. Cheaper, less flexible, limited temperature range (-20°C to +80°C). Best for fixed indoor installations.
- RG316: Stranded (flexible) core, FEP jacket. More expensive, highly flexible, wide temperature range (-55°C to +200°C). Best for moving parts or extreme environments.
