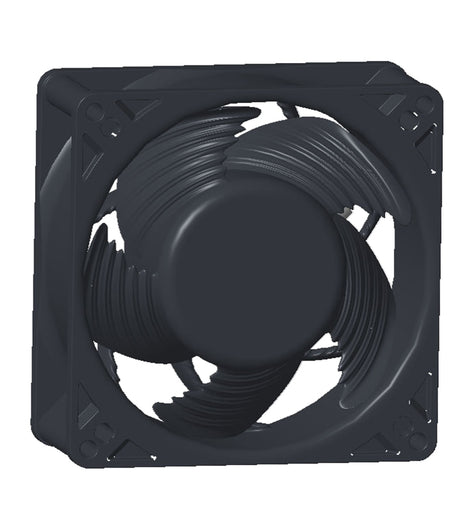

ebmpapst AxiForce 92mm Industrial Axial Fan
Product Overview
ebmpapst AxiForce 92mm is a high-performance DC axial fan with IP68 high protection grade. It adopts optimized aerodynamic design, integrates PWM speed regulation and tacho signal feedback, and is equipped with comprehensive circuit protection. It features stable operation, wide temperature adaptability and long service life, suitable for industrial equipment, electronic modules and other harsh environment cooling scenarios.
Click on email or WhatsApp. Online customer service.
Core Parameter Table
| Item | Specifications |
|---|---|
| Model | VWCF092KJGMS |
| Rated Voltage | 24 V DC |
| Voltage Range | 8 ~ 28 V DC |
| Dimension | 92 × 92 × 25 mm |
| Weight | 250 g |
| Structure Material | Plastic frame & plastic impeller |
| Bearing Type | Precision ball bearing |
| Mounting | Any angle, Screw: M4, Max torque: 1.2 Nm |
| Wire Spec | Length: 500 mm (±10 mm); Wire definition: Red (+UB), Black (GND), Blue (PWM), White (Tacho) |
Performance Data (23°C Test Environment)
| Speed (rpm) | Rated Power | Rated Current | Max Airflow | Max Static Pressure | Noise Level |
|---|---|---|---|---|---|
| 8600 | 14.7 ~ 19.8 W | 0.76 ~ 1.00 A | 202 m³/h | 219 Pa | 55 ~ 62 dB(A) |
| 7138 | 8.4 ~ 11.3 W | 0.43 ~ 0.57 A | 168 m³ | 144 Pa | 51 ~ 58 dB(A) |
| 5676 | 4.2 ~ 5.7 W | 0.22 ~ 0.29 A | 134 m³/h | 91 Pa | 45 ~ 52 dB(A) |
| 4300 | 1.8 ~ 2.5 W | 0.09 ~ 0.12 A | 101 m³/h | 52 Pa | 38 ~ 45 dB(A) |
Electrical & Functional Features
- Control Mode: PWM speed regulation (frequency: 1 kHz ~ 25 kHz, typical 2 kHz), 0-100% stepless speed adjustment
- Signal Output: Tacho speed signal (2 pulses per revolution)
- Built-in Protection: Reverse polarity protection, locked rotor protection with auto-restart; Locked rotor current: approx. 2.75 A
- Protection Class: IP68 (Dust-tight & waterproof, supports long-term immersion)
- Temperature Range: Operating: -30℃ ~ +70℃; Storage: -40℃ ~ +80℃
- Salt Spray Resistance: Compliant with GB/T 10125 standard, 5% NaCl salt spray test for 720 hours
Certifications & Reliability
- Certifications: UL, CSA, CE, fully compliant with relevant electrical safety and EMC standards
- EMC Performance: Passed radiated emission, electrostatic discharge, surge and other anti-interference tests
- Design Life: Long-term maintenance-free operation
Main Advantages
- High protection: IP68 rating adapts to damp, dusty and other harsh industrial environments
- Smart control: PWM speed + tacho feedback, easy to connect with intelligent control systems
- Full protection: Multiple circuit protection effectively avoids damage caused by wiring errors and blade jamming
- Wide adaptability: Ultra-wide operating temperature range, stable performance under extreme temperature conditions
Application Scenarios
Industrial control equipment, outdoor electronic modules, power supplies, inverters, communication equipment, and devices requiring waterproof & dustproof cooling.
Safety Notes
- Professional electricians are required for installation and maintenance; cut off the power supply before operation
- Not applicable to aerospace, rail transit, ships and explosive hazardous areas
- Prohibit using high-pressure water guns and corrosive cleaners to clean the fan
