Model Description
Nokia FUFBO 473317A,995770 DLC/ID-DSC/ID-SM-5.0-10m
Nokia FUFBP 473318A,995771 DLC/ID-DSC/ID-SM-5.0-30m
Nokia FUFBR 473320A,995773 DLC/ID-DSC/ID-SM-5.0-80m
Nokia FUFBS 473321A,995774 DLC/ID-DSC/ID-SM-5.0-100m



Click on email or WhatsApp. Online customer service.

Product Description

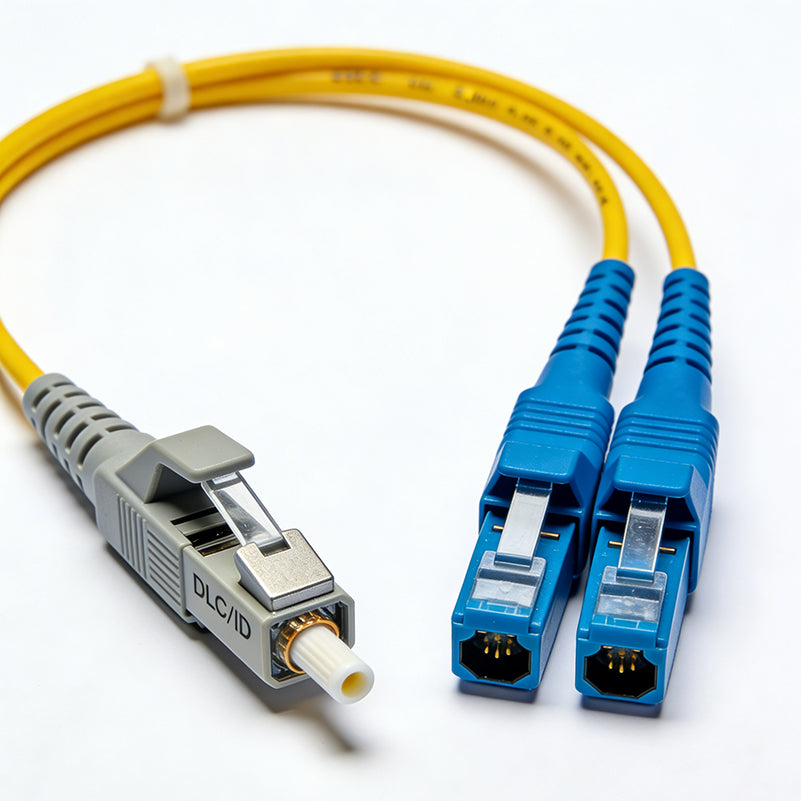

A heterogeneous-interface single-mode CPRI patch cord engineered for indoor high-density optical communication, featuring a DLC/ID dustproof interface (with connection status monitoring) and a DSC/ID duplex anti-misplug interface. It uses 9/125μm G657A1 fiber, supporting 1310/1550nm wavelengths with insertion loss ≤0.25dB and return loss ≥55dB for low-interference transmission.

The 5.0mm LSZH flame-retardant cable is reinforced with aramid yarn (tensile strength ≥80N), boasting a dynamic bending radius of 20×D and static radius of 10×D for flexible routing in confined spaces. Custom lengths (1–50m, ±10cm tolerance) are available, with stable performance in -20℃~+60℃ and compliance with IEC 61300-3-4 standards.

Main Applications

  1. Smart Building Cabling: Matches DLC intelligent distribution frames for horizontal/vertical cable connections in telecom rooms, complying with GB/T 18233 and GB 50311.
  2. Data Center Interconnection: Links switches, servers and distribution frames in cabinets, solving cross-interface compatibility issues for high-speed data transmission.
  3. Enterprise Room Networking: Enables short-to-medium distance connections between servers, TOR switches and transceivers, with dustproof and flame-retardant features adapting to dense equipment environments.
Parameter Specification
Product Model DLC/ID-DSC/ID-SM-5.0
Fiber Type Single-mode fiber (9/125μm), compliant with G657A1 standard
Connector Type DLC/ID (dust-proof, with connection status transmission function); DSC/ID (duplex, anti-misplug design)
Polish Type UPC precision polished ceramic ferrule
Operating Wavelength 1310nm, 1550nm
Insertion Loss ≤0.25dB
Return Loss ≥55dB
Transmission Attenuation Coefficient ≤0.34dB/km (1310nm); ≤0.20dB/km (1550nm)
Cable Outer Diameter 5.0mm
Cable Sheath Material LSZH (Low Smoke Zero Halogen) flame-retardant material
Reinforcement Structure Built-in aramid yarn reinforcement layer
Tensile Strength ≥80N
Bending Radius Dynamic: 20× cable diameter; Static: 10× cable diameter
Customizable Length 1–50m (tolerance: ±10cm)
