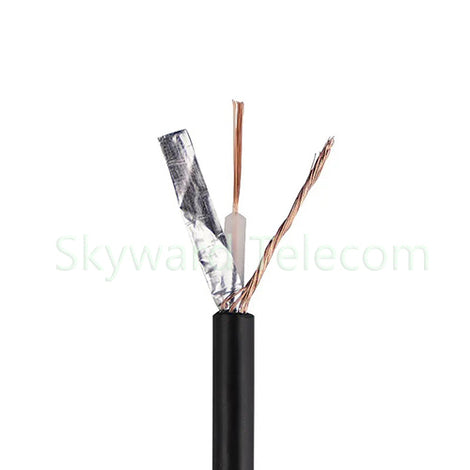

RG59 Flexible Coaxial Cable 75 Ohm PVC Jacket
Product Description
Key Specifications
| Parameter | Details |
|---|---|
| Impedance | 75 Ohms (Standard for Video & CATV) |
| Nominal Velocity of Propagation (VP) | 66% |
| Capacitance | 21 pF/ft (69 pF/m) |
| Center Conductor | Solid Copper or CCS (Copper Clad Steel), typically 20 AWG |
| Dielectric | Foam Polyethylene (PE) |
| Shielding | 90% Tinned Copper Braided Shield (Standard) |
| Outer Jacket | Flexible PVC (Polyvinyl Chloride) |
| Max Operating Voltage | 2,300 V RMS (Peak) |
| Operating Temperature | -20°C to +75°C (Standard PVC); -40°C to +80°C (Low Temp PVC) |
| Attenuation (Loss) | ~1.2 dB per 10 meters at 200 MHz (Higher loss than RG6) |
| Weight | Approx. 4.5 kg per 100 meters |
Physical Characteristics
- Nominal OD (Outer Diameter): 6.15 mm (0.242 inches)
- Bending Radius: 50 mm (2 inches) static; 100 mm (4 inches) dynamic.
- Flexibility: Highly flexible due to the smaller conductor size and PVC jacket, making it ideal for internal wiring and tight bends.
Common Connector Types
- BNC (Bayonet Neill–Concelman): The standard connector for CCTV cameras, video monitors, and test equipment.
- F-Type: Used for older CATV (Cable TV) installations and some satellite receivers.
- RCA (Phono): Common for home audio/video equipment (DVD players, VCRs).
Key Features
- 75-Ohm Impedance: Optimized for video bandwidth, ensuring compatibility with standard video equipment and minimizing signal reflections in video lines.
- Cost-Effective: A very economical solution for low-frequency video and data transmission.
- High Flexibility: Easier to handle and install than the thicker RG6 cable, especially in residential or retrofit installations.
- Standardized Shielding: The 90% braided shield provides adequate protection against interference for standard video applications.
Applications
- CCTV Systems: The most common use for RG59 is connecting security cameras to Digital Video Recorders (DVRs).
- Analog Video: Used for distributing composite video signals in home theaters or commercial AV setups.
- CATV & Broadband: Historically used for cable TV and internet modems (though RG6 is now preferred for higher speeds).
- Intercom Systems: Used in some wired intercom and paging systems.
Important Note
