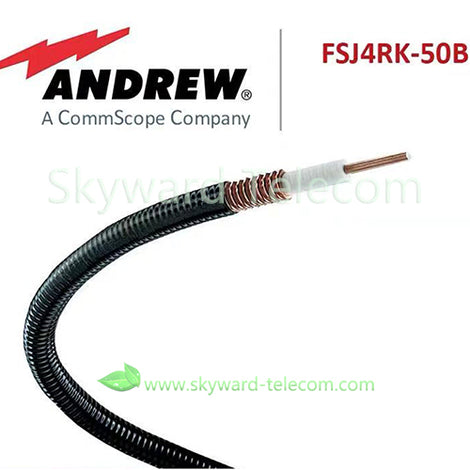

ANDREW FSJ4RK-50B Superflexible Foam Coaxial Cable
Features and benefits
FSJ4RK-50B, Superflexible Foam Coaxial Cable, corrugated copper, 1/2 in, black non-halogenated, fire retardant polyolefin jacket B2ca-s1a-d1-a1
Skyward Telecom offers the latest ANDREW compatible products. Low prices, high quality.
FProduct classification
| Product Type | Coaxial wireless cable |
| Product Brand | compatible/HELIAX® | SureFlex® |
| Product Series | FSJ4-50B |
General specifications
| Product Number | 520094502/00 | SZ520094502/00 |
| Flexibility | Superflexible |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
Dimensions
| Diameter Over Dielectric | 8.89 mm | 0.35 in |
| Diameter Over Jacket | 13.462 mm | 0.53 in |
| Inner Conductor OD | 3.556 mm | 0.14 in |
| Outer Conductor OD | 12.192 mm | 0.48 in |
| Nominal Size | 1/2 in |
Electrical specifications
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 82.7 pF/m | 25.207 pF/ft |
| dc Resistance, Inner Conductor | 2.69 ohms/km | 0.82 ohms/kft |
| dc Resistance, Outer Conductor | 5.12 ohms/km | 1.561 ohms/kft |
| dc Test Voltage | 2500 V |
| Inductance | 0.207 µH/m | 0.063 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 4000 V |
| Operating Frequency Band | 1 – 10200 MHz |
| Peak Power | 22.5 kW |
| Velocity | 81 % |
Our Services
- Cost-effective equipment
- Faster delivery
- Worldwide shipping
- Alternative supply
- Sample service
- Test and warranty
For this model, we have new original, cost-effective compatible, and economical second-hand . We provide you with a variety of choices, the same quality! Each products has been strictly tested to ensure stable performance, worry-free use, and enjoy an efficient experience.
Full range of options: new original quality assurance, compatible models are super value and practical, and second-hand are economical and durable.
Strict quality control: each products is tested before shipment.
Worry-free after-sales: warranty commitment, normal use, and quality problems can be returned or exchanged.
