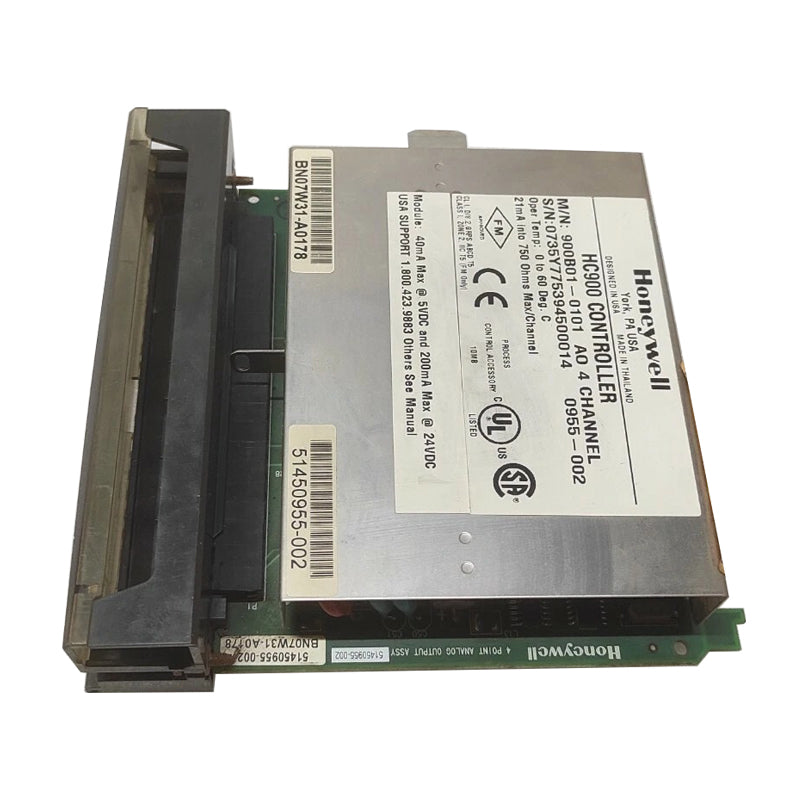

Honeywell ControlEdge HC900 900B AO Analog Output Module
Honeywell ControlEdge HC900 900B AO Analog Output Module
100 em stock
Vendor: Skyward Telecom
Share
Collapsible row
Collapsible row
Our Services
- Cost-effective equipment
- Faster delivery
- Worldwide shipping
- Alternative supply
- Sample service
- Test and warranty
Industrial Automation Spare Parts | 900B Series Analog Output Cards
Product Description
The Honeywell ControlEdge HC900 AO (Analog Output) modules belong to the 900B series I/O cards for the HC900 hybrid process controller system. The AO module converts digital control signals sent by HC900 CPU into standard 4-20mA / 0-20mA analog current signals, used to regulate control valves, variable frequency drives and other field actuators.
Key features: high output precision (typical ±0.1% full scale at 25°C), channel-to-channel and backplane isolation, hot-swappable design for rack installation, stable and reliable for continuous industrial process control.
Application Scenarios
- Industrial boilers & burner management systems
- Heat treatment furnaces, kilns and thermal processing
- Chemical processing plants
- Water & wastewater treatment flow/pressure regulation
- Oil & gas auxiliary control systems
- Food & beverage process automation
- Energy and power generation auxiliary control
HC900 AO Analog Output Module Available Models
| Part Number | Product Name | Description |
|---|---|---|
| 900B01-0101 | 4CH Analog Output Module | 4CH analog output, 4~20mA, channel-to-channel and backplane isolation |
| 900B01-0201 | 4CH Analog Output Module | 4CH AO, upgraded hardware revision with improved isolation performance |
| 900B08-0001 | 8CH Analog Output Module | 8-channel analog output card, 4~20mA, for multi-loop control applications |
| 900B16-0001 | 16CH Analog Output Module | 16CH AO, early version, high-density output for large I/O count projects |
| 900B16-0202 | 16CH Analog Output Module | 16-channel analog output, most popular model in spare market |
Full HC900 Series Module Reference
| Product Series | Part Number | Name | Description |
|---|---|---|---|
| HC900 AI Analog Input | 900A01-0102 | 8CH Universal Analog Input Module | 8-channel universal AI card, supports TC, RTD, mA, mV and voltage signals |
| HC900 AI Analog Input | 900A01-0202 | 8CH Universal Analog Input Module | 8-channel universal analog input with point-to-point and backplane isolation, widely used spare part |
| HC900 AI Analog Input | 900A16-0001 | 16CH High Level Analog Input Module | 16-channel high level AI for 4-20mA / 0-10V transmitter signals, 8 channels/group isolation |
| HC900 AI Analog Input | 900A16-0103 | 16CH High Level Analog Input Module | 16-channel high level analog input, upgraded revision with <10ms full-channel update rate |
| HC900 DI Digital Input | 900G01-0102 | 16CH Contact Digital Input Module | 16CH dry contact DI, early version |
| HC900 DI Digital Input | 900G01-0202 | 16CH Contact Digital Input Module | 16CH dry contact input for relay/switch passive contacts, common model |
| HC900 DI Digital Input | 900G02-0202 | 16CH 24VDC Digital Input Module | 16CH 24VDC digital input, source/sink type, high market demand |
| HC900 DI Digital Input | 900G03-0202 | 16CH 120/240VAC Digital Input | 16CH AC high voltage DI for AC field switch signals |
| HC900 DI Digital Input | 900G04-0101 | 16CH AC/DC Digital Input Module | 16CH universal AC/DC discrete input |
| HC900 DI Digital Input | 900G32-0301 | 32CH 24VDC Digital Input Module | 32CH high density 24VDC DI, saves rack slot space |
| HC900 DO Digital Output | 900H02-0202 | 16CH 24VDC Digital Output Module | 16CH 24VDC digital output, single point drive, common spare for industrial projects |
| HC900 DO Digital Output | 900H32-0302 | 32CH 24VDC Digital Output Module | 32CH high density 24VDC DO, saves rack slots, widely available |
| HC900 DO Digital Output | 900H01-0102 | 16CH Relay Digital Output Module | 16CH relay dry contact output, drives high voltage load with isolation |
| HC900 DO Digital Output | 900H01-0202 | 16CH Relay Digital Output Module | Upgraded relay output card, suitable for non-24V loads |
| HC900 DO Digital Output | 900H32-0102 | 32CH 24VDC Digital Output Module | 32CH 24VDC digital output, early revision, available in spare market |
| HC900 CPU Controller | 900C30-0460 | C30 Standard CPU Controller | Entry-level CPU, max 400 function blocks, non-redundant, single Ethernet for small projects |
| HC900 CPU Controller | 900C30S-0460 | C30 SIL2 Rated CPU Controller | C30 safety version with SIL2 certification for boiler & burner BMS |
| HC900 CPU Controller | 900C50-0460 | C50 Standard CPU Controller | Mid-range CPU, 2000 function blocks, larger I/O capacity, single Ethernet |
| HC900 CPU Controller | 900C50S-0460 | C50 SIL2 Rated CPU Controller | SIL2 certified C50 for medium scale safety control systems |
| HC900 CPU Controller | 900C70-0460 | C70 Standard CPU Controller | High-performance standard CPU, 15000 function blocks, dual Ethernet |
| HC900 CPU Controller | 900C75S-0460 | C75 SIL2 Redundant CPU Controller | SIL2 certified, supports hot standby redundancy, dual Ethernet for critical non-stop process |
| HC900 Power Supply | 900P01-0301 | 900P01 60W AC Power Supply | 120/240VAC, 60W standard AC power supply, general-purpose |
| HC900 Power Supply | 900P01-0401 | 900P01 SIL Rated 60W AC Power Supply | SIL rated power supply for SIL2 safety rack system |
| HC900 Power Supply | 900P01-0201 | 900P01 60W AC Power Supply | Older hardware revision, common replacement spare |
| HC900 Power Supply | 900P01-0701 | 900P01 Extended Temp 60W AC Power | Wide temperature -40~70℃, for harsh industrial environment |
| HC900 Power Supply | 900P02-0001 | 900P02 28W Compact AC Power Supply | 28W compact AC power for small 4-slot rack, low power consumption |
| HC900 Power Supply | 900P24-0001 | 900P24 24VDC Input Power Supply | 24VDC input power module, no AC conversion, widely used in redundant rack |
