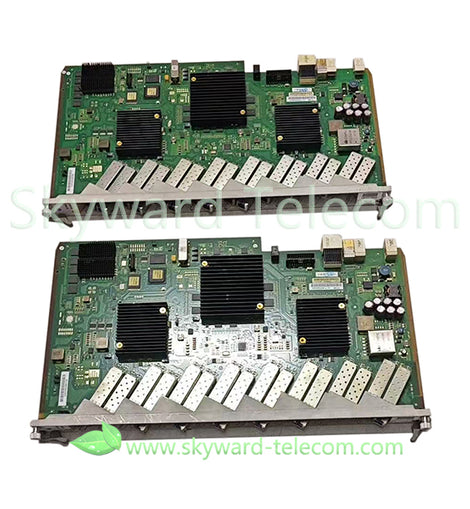

Alcatel-Lucent 7360 3FE68954AB FPBA-FGLT-B GPON OLT 16-Port Module
|
Brand: Alcatel-Lucent
|
Model: 3FE68954AB |
|
Type: Module card
|
Expansion Slot Type: SFP |
|
Number of Ports: 16 ports
|
MPN: FGLT-B |
The Alcatel-Lucent 7360 3FE68954AB FPBA-FGLT-B is a 16-port GPON OLT (Optical Line Terminal) module designed for the Nokia (formerly Alcatel-Lucent) 7360 ISAM FX series multi-service access platform.
Click on email or WhatsApp. Online customer service.
📦 1. Product Overview
Model: 3FE68954AB (functional designation: FPBA-FGLT-B or FGLT-B).
Platform: Part of the Nokia 7360 ISAM FX OLT family, supporting GPON (Gigabit Passive Optical Network) technology for FTTx deployments.
Key Role: Provides 16 GPON ports for connecting optical network terminals (ONTs/ONUs) in fiber access networks.
Form Factor: Modular line card (LT) inserted into 7360 ISAM FX chassis slots (compatible with FX-4, FX-8, and FX-16 shelves).
⚙️ 2. Technical Specifications
Port Density: 16 GPON ports per card.
Data Rates:
- Downstream: 2.5 Gbps per PON port.
- Upstream: 1.25 Gbps per PON port.
Optical Budget:Class B+/C+/C++ support (e.g., up to 28 dB loss budget, enabling ~20 km reach with 1:64 split ratio).
Compatibility:
- Works with standard GPON ONTs/ONUs.
- Integrates with 7360 ISAM FX chassis (e.g., paired with FANT-F/G control cards).
- Power Consumption: Energy-efficient design (exact watts not specified, but 7360 FX-16 full-configuration draws ~1800W).
Software Features:
- Supports DBA (Dynamic Bandwidth Allocation) and QoS for traffic prioritization.
- Enables IGMPv3 for IPTV multicast and VoIP (SIP/H.248).
🔧 3. Deployment Use Cases
FTTH/FTTB Networks: Delivers high-speed internet, voice, and video to residential/business users.
Multi-Service Support: Handles triple-play services (HSI, VoIP, IPTV) and business services (e.g., VPNs, mobile backhaul).
Scalability: Fits into 7360 FX shelves (FX-4: 4 slots, FX-8: 8 slots, FX-16: 16 slots), allowing up to 256 GPON ports per FX-16 chassis.
Management:
- Configured via CLI/TL1 or 5520 AMS network management system.
- Commands include PON port setup, ONT provisioning, and VLAN stacking (Q-in-Q).
⚠️ 4. Key Features
High Density: 16 ports/card optimize rack space.
Redundancy: Supports 1+1 protection for PON links and dual NT cards for chassis resilience.
Security: Includes MAC filtering, DHCP Option 82, and ACL support.
Advanced QoS: Profiles for guaranteed bandwidth (e.g., configure qos profiles shaper for downstream rates).
📊5. Comparison to Similar Cards
| Feature | FGLT-B (3FE68954AB) | FWLT-B (XGS-PON) |
|---|---|---|
| Technology | GPON (2.5G/1.25G) | XGS-PON (10G/10G) |
| Ports | 16 | 8 |
| Split Ratio | 1:64 (up to 1:128) | 1:64 |
| Use Case | Residential FTTH | High-capacity business |
🛠️ 6. Installation & Maintenance
Hot-Swappable: Can be replaced without powering down the chassis.
Monitoring:
- Use show pon optics to check optical power levels.
- show equipment ont interface verifies ONT status.
Common Commands:
- PON Port Enable: configure interface port pon:1/1/2/1 admin-up.
- ONT Provisioning: configure equipment ont interface 1/1/2/4/13 admin-state up.
📎 7. Documentation & Resources
Configuration Guides: See Alcatel-Lucent’s 7360 ISAM FX documentation.
Hardware Manuals: Detail slot compatibility (e.g., LT slots in FX shelves).
💎 Conclusion
The Alcatel-Lucent 7360 FGLT-B card is a robust, high-density GPON solution for modern FTTx networks. Its compatibility with the scalable 7360 ISAM FX platform and support for advanced features like DBA and QoS make it ideal for service providers. For deployment, ensure software compatibility (e.g., SR OS version) and use genuine SFP modules. Let me know if you need help with configuration or sourcing!
