Nokia Alcatel-Lucent 8DG60568AA 05 MESH4 MESH Extension Pack (External Coupler Card) for 1830 PSS-36, PSS-32, PSS-16

Nokia Alcatel-Lucent 8DG60568AA 05 MESH4 MESH Extension Pack (External Coupler Card) for 1830 PSS-36, PSS-32, PSS-16

The Nokia / Alcatel-Lucent 8DG60568AA MESH4 is a MESH Extension Pack, also known as External Coupler Card for the Nokia 1830 Photonic Service Switch DWDM optical transport platform. This is a supporting photonic module designed to work in conjunction with WR wavelength router cards. It monitors and amplifies the incoming MESHOUT signal from WR cards and splits the signal into four independent optical outputs to expand mesh network directions.

Product Details

Manufacturer: Nokia / Alcatel‑Lucent
Part Number: 8DG60568AA 05
Card Model: MESH4
Product Type: MESH Extension Pack (External Coupler Card)
Function: Signal monitoring, amplification and 1-to-4 optical splitting for WR card MESHOUT signal
Front Panel Interface: 5 × LC optical ports (1 input, 4 outputs)
Compatible Platform: Nokia 1830 PSS‑36, PSS‑32, PSS‑16. Requires WR wavelength router card, please confirm your chassis model and software release before ordering.
Condition: Used or refurbished, subject to actual stock availability and inspection.

Key Features

• MESH4 MESH Extension Pack (External Coupler Card) for Nokia 1830 PSS DWDM platform
• Uni-directional LD pack: monitors and amplifies input MESHOUT signal from WR wavelength router cards
• Splits one input optical signal into four separate outputs, to expand mesh network directions of ROADM nodes
• Not a standalone WSS ROADM card; must pair with WR series wavelength router cards for operation

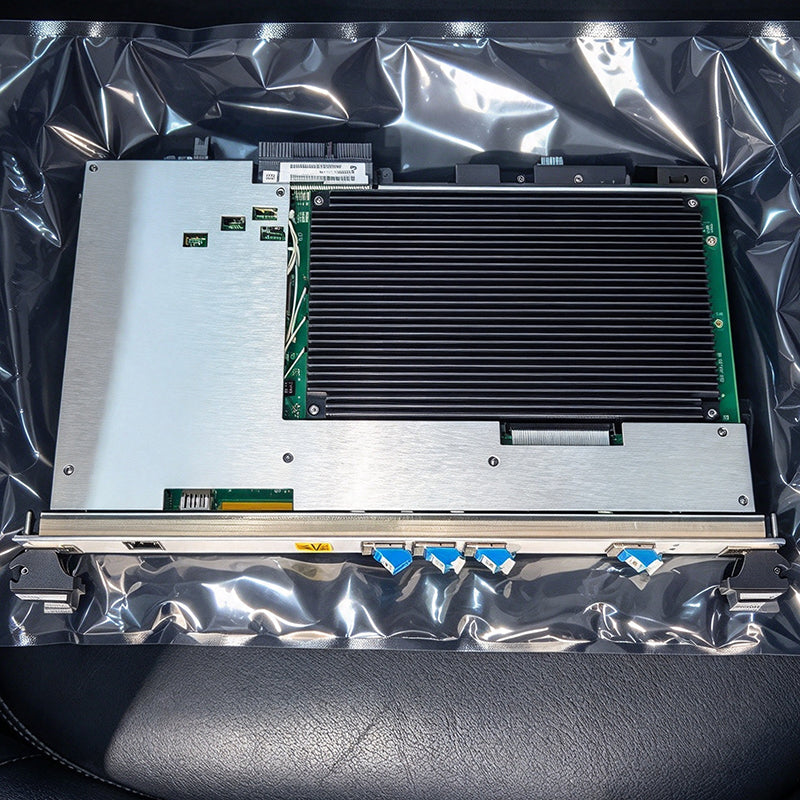

• Front panel equipped with 5 LC optical ports (1 input port + 4 output ports)
• Optimized for metro and regional mesh DWDM network expansion
• Telecom spare hardware for network upgrade, expansion, maintenance and equipment replacement

Compatibility Notice

This MESH4 MESH extension pack is engineered for Nokia 1830 PSS‑36, PSS‑32 and PSS‑16 platforms. It is a dependent auxiliary module and requires WR wavelength router card to operate. Please verify the complete part number, hardware revision, chassis model and system software compatibility before purchase or installation. Confirm the supported configuration against the applicable Nokia 1830 PSS product documentation.

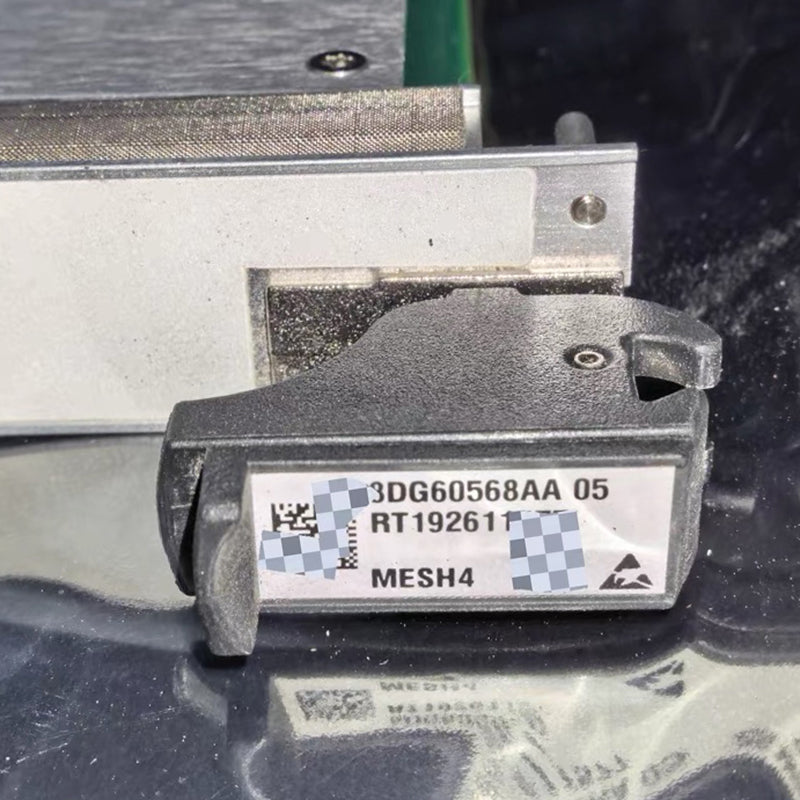

Note: Part number suffix indicates hardware variation. Please verify the full part number against the physical label before ordering.
