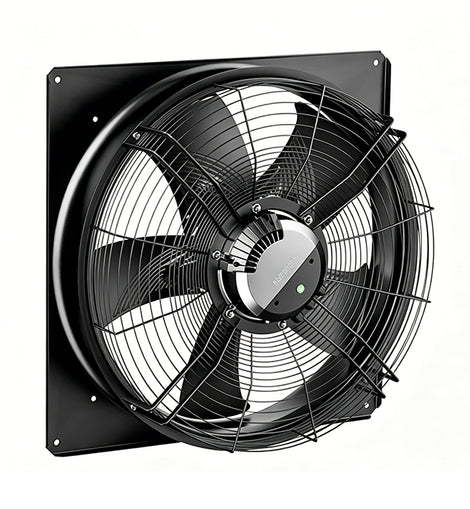

ebmpapst W3G710-NU31-03 AxiBlade 710mm EC Axial Fan
Product Overview
W3G710-NU31-03 is a large-size three-phase EC axial fan from ebmpapst AxiBlade S series. Equipped with sickle-shaped impeller, integrated M3G150-IF motor, integral fan housing and protective grille. It delivers large airflow and stable static pressure, featured with IP55 protection grade, complete intelligent control, communication and multi-protection functions. Fully compliant with EU ErP standards, it is widely used in large industrial ventilation, cooling towers, refrigeration units and other heavy-duty applications.
Click on email or WhatsApp. Online customer service.
1. Core Performance & Electrical Parameters
| Item | Specification |
|---|---|
| Model | W3G710-NU31-03 |
| Matched Motor | M3G150-IF |
| Power Supply | 3-phase 380~480 VAC, 50/60 Hz |
| Rated Speed | 1680 rpm |
| Rated Power | 3800 W |
| Rated Current | 5.8 A |
| Max Static Pressure | 420 Pa (1.69 in.wg) |
| Airflow @ Optimal Efficiency | 17375 m³/h |
| Overall Efficiency | 52.2% |
| Efficiency Grade | 55 |
| Total Weight | 39.8 kg |
2. Mechanical & Structural Specifications
| Item | Specification |
|---|---|
| Fan Size | 710 mm |
| Impeller | 5 pcs sickle-shaped blades, 0° pitch, PP material |
| Rotation & Airflow | Clockwise (view from rotor), axial air outlet |
| Main Material | Fan housing & grille: Galvanized steel with black plastic coating; Electronic box: Die-cast aluminum; Rotor: Painted black |
| Bearing | Precision ball bearing |
| Operation Mode | S1 (24-hour continuous operation) |
| Protection Class | IP55 |
| Insulation Class | F |
| Environmental Class | H2 |
| Mounting | Shaft horizontal / rotor downward (rotor upward optional); With drain holes on rotor side |
| Mounting Cutout | BG630: Ø785 mm / BG710: Ø830 mm / BG800: Ø950 mm / BG910: Ø1050 mm |
3. Ambient Parameters
| Item | Specification |
|---|---|
| Operating Temperature | -40 ℃ ~ +60 ℃ (Intermittent start allowed between -40℃ and -25℃) |
| Storage Temperature | -40 ℃ ~ +80 ℃ |
| Leakage Current | ≤ 3.5 mA (Compliant with IEC 60990) |
4. Control & Communication Features
- Speed Regulation: 0-10V analog / PWM dual speed control
- Communication Protocol: MODBUS-RTU V6.3, support remote parameter setting & monitoring
- Interfaces: Configurable digital & analog I/O, alarm relay output
- Auxiliary Power: 3.3~24 VDC adjustable output, Max 800 mW
- External Parameter Port: 15~50 VDC input for offline configuration
- Start Mode: Soft start to reduce inrush current
- Status Indicator: Tri-color LED (Green=Normal, Orange=Warning, Red=Fault)
5. Protection & EMC
- Electrical Protection: Reverse polarity, locked rotor, over/under voltage & phase loss protection, current limiting
- Thermal Protection: Overheat protection for motor and electronics
- EMC Standard: EN 61000-6-2 (Immunity), EN 61000-3 (Emission)
6. Certifications & Compliance
- Executive Standard: EN 61800-5-1
- Certifications: CE, UKCA, EAC, UL, CSA
- Energy Compliance: Meet EU 327/2011 ErP Ecodesign Regulation
7. Key Advantages
- High efficiency and energy saving, superior performance beyond industry requirements.
- IP55 dust & water resistance, rugged metal structure for harsh industrial environments.
- Rich interfaces and standard communication, easy to integrate into centralized control system.
- Multiple protection mechanisms ensure long-term stable 24-hour operation.
- Wide temperature adaptability, reliable for low-temperature startup.
8. Application Scenarios
Cooling towers, large air conditioning units, factory ventilation & exhaust, refrigeration equipment, energy storage systems, high-power power cabinets and large air handling systems.
