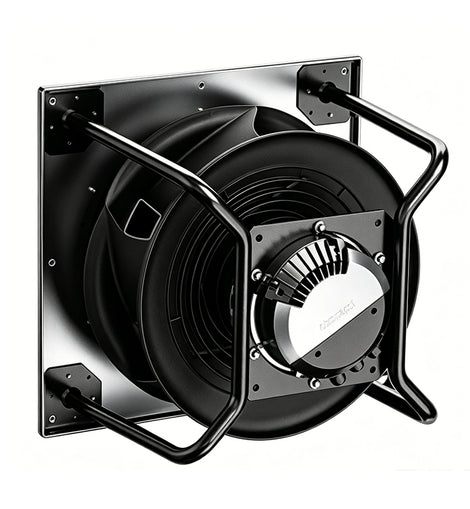

ebm-papst RadiCal VBH0355PTRLZ EC Centrifugal Fan
ebm-papst RadiCal VBH0355PTRLZ EC Centrifugal Fan
100 en stock
Vendor: Skyward Telecom
Share
Collapsible row
Collapsible row
Our Services
- Cost-effective equipment
- Faster delivery
- Worldwide shipping
- Alternative supply
- Sample service
- Test and warranty
Product Overview
1. Core Performance & Electrical Parameter Table
| Parameter Item | Specification |
|---|---|
| Full Model No. | VBH0355PTRLZ |
| Item Code | 8317086543 |
| Product Series | RadiCal Single-Inlet Backward Curved EC Centrifugal Fan |
| Impeller Diameter | 355 mm |
| Matching Motor | M3G112-GA 3-phase GreenTech EC Motor |
| Nominal Power Supply | 400 VAC 3-phase |
| Operating Voltage Range | 380 ~ 480 VAC |
| Frequency | 50 / 60 Hz |
| Rated Max Load Speed | 3230 rpm |
| Rated Input Power | 2900 W |
| Rated Input Current | 4.4 A |
| Optimum Efficiency Airflow | 5145 m³/h |
| Optimum Static Pressure | 1232 Pa |
| Maximum Static Pressure | 1700 Pa |
| Overall Static Efficiency | 65.0 % |
| ErP Efficiency Grade N | 70.7 (Exceeds mandatory standard N=62) |
| Operating Ambient Temp | -40 ℃ ~ +45 ℃ (Intermittent startup between -40~-25℃ allowed; special low-temp bearings required for continuous operation below -25℃) |
| Storage & Transport Temp | -40 ℃ ~ +80 ℃ |
| Net Weight | 22.58 kg |
2. Mechanical & Structural Specifications
| Parameter Item | Specification |
|---|---|
| Impeller | 5 pcs backward curved sheet aluminum blades, clockwise rotation (rotor view) |
| Frame & Bracket | Galvanized steel support plate + black coated steel mounting bracket |
| Inlet Nozzle | Galvanized steel air inlet ring with pressure tap (k-factor=148) |
| Electronic Enclosure | Die-cast gray aluminum housing |
| Bearing System | Maintenance-free precision ball bearing |
| Operation Duty | S1 24-hour continuous operation |
| Protection Class | IP55 |
| Insulation Class | Class F |
| Humidity Environmental Grade | H1 |
| Special Feature | Built-in vibration monitoring sensor |
| Drain Design | Condensate drain holes on rotor side |
| Mounting Mode | Horizontal shaft standard, rotor upward optional; vertical bracket installation only |
| Square Mount Cutout | 375 / 450 / 500 mm |
3. Control, Communication & I/O Functions
| Function Item | Technical Details |
|---|---|
| Speed Regulation | 0–10 V / PWM dual analog speed control |
| Communication Protocol | RS485 MODBUS-RTU V6.3 |
| Auxiliary Power Output | 3.3~24 VDC adjustable, Max 800 mA short-circuit protected |
| Offline Parameter Power | 15–50 VDC external power supply for offline MODBUS configuration |
| I/O Resources | Configurable IO1 digital input, IO2 analog setpoint input, IO3 0-10V analog output |
| Status Feedback | Floating fault relay (COM / NC contact) |
| Indicator | Tri-color LED: Green=Normal, Orange=Warning, Red=Fault |
| Controller | Integrated PI controller + soft start to reduce inrush current |
| Extra Monitor | Built-in vibration sensor for real-time equipment condition monitoring |
4. Protection & EMC Compliance
| Protection Item | Description |
|---|---|
| Electrical Safeguard | Reverse polarity, locked rotor auto-restart, over/under voltage & phase loss, motor current limiting |
| Thermal Protection | Dual overheat protection for motor and drive electronics |
| Safety Touch Current | ≤ 3.5 mA (IEC 60990 standard) |
| EMC Standard | EN 61000-6-2 (industrial anti-interference), EN 61000-6-4 (industrial emission) |
5. Certifications & Energy Compliance
- Executive Standard: EN 61800-5-1
- Global Certifications: CE, UL, CSA, AMCA, EAC
- Energy Norm: EU Regulation (EU) 327/2011 ErP Ecodesign Directive
- Test Standards: ISO 5801 airflow measurement, ISO 13347 noise test
6. Key Product Advantages
- Ultra-high static pressure up to 1232 Pa, perfect for high-resistance filtration, dust removal and duct systems
- Aluminum impeller with high structural strength, stable under high wind pressure, long service life
- Unique built-in vibration sensor, real-time operation condition monitoring for predictive maintenance
- IP55 + H1 humidity grade, stable in damp, slightly dusty industrial environments
- Complete MODBUS bus control, easy integration with industrial centralized control systems
- Pre-assembled full mounting bracket and pressure tap, convenient on-site installation and airflow calibration
7. Typical Application Scenarios
