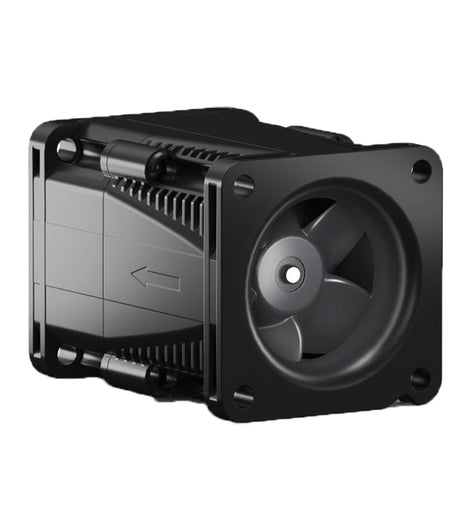

ebmpapst DiaForce 40mm Mixed-Flow Fan
Product Overview
ebmpapst DiaForce 40mm is a high-performance mixed-flow fan. It features ultra-high static pressure, compact size and long service life. Equipped with PWM speed control + tacho signal output and multiple built-in circuit protections, it is widely used for heat dissipation of compact high-density electronic devices.
Click on email or WhatsApp. Online customer service.
Core Parameter Table
| Item | Specification |
|---|---|
| Model | VKCH040DHDGS |
| Part No. | 8300101208 |
| Dimensions | 40 × 40 × 56 mm |
| Weight | 74 g |
| Material | Plastic frame & plastic impeller |
| Bearing | Preloaded ball bearing |
| Rated Voltage | 12 V DC |
| Voltage Range | 8 ~ 13.8 V DC |
| Rated Speed | 40000 rpm |
| Rated Power | 25.6 W |
| Rated Current | 1.86 ~ 2.5 A |
| Max Airflow | 55 m³/h |
| Max Static Pressure | 2375 Pa |
| Noise Level | 64 dB(A) |
| Control Mode | PWM (1 kHz ~ 30 kHz, typical 2 kHz) |
| Signal | Tacho output (2 pulses per revolution) |
| Operating Temp | -20 ℃ ~ 70 ℃ |
| Storage Temp | -40 ℃ ~ 80 ℃ |
| Protection Class | IP20 |
Electrical Protection
- Reverse polarity protection, locked rotor auto-restart
- Locked rotor current: approx. 5000 mA
- Start-up current: ≤ 7000 mA
- No built-in fuse
Reliability & Certifications
- Service life (@40℃): 70000 hours
- Certifications: CE, UKCA, EAC, UL, VDE, CSA
Main Features
- Extremely high static pressure, excellent for high-resistance narrow space cooling
- PWM stepless speed regulation + tacho feedback, easy for system integration
- Preloaded ball bearing, low vibration, 24h continuous operation supported
- Complete circuit protection ensures stable operation
Application
High-density circuit modules, small industrial power units, portable precision equipment, embedded systems and other compact electronic cooling scenarios.
