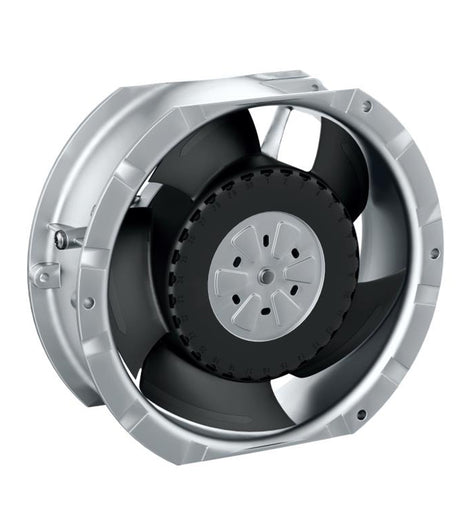

ebmpapst AxiForce 172mm Industrial Axial Fan
Product Overview
Original ebmpapst AxiForce 172mm high-performance DC axial fan. It features large airflow, high static pressure, built-in PWM speed control and tacho signal output. Equipped with overvoltage, undervoltage and locked rotor protection, it runs stably for a long time. Widely used for large industrial equipment, power cabinets, inverters and ventilation cooling.
Click on email or WhatsApp. Online customer service.
Core Parameters Table
| Part No. | Model | Rated Voltage | Rated Speed | Rated Power | Rated Current | Max Airflow | Max Static Pressure | Noise Level |
|---|---|---|---|---|---|---|---|---|
| 8315100157 | VWLG150KJLRS | 24V DC | 6800 rpm | 58 W | 2375 mA | 530 m³/h | 660 Pa | 71 dB(A) |
| 831510059 | VWLG150KKLSS | 48V DC | 8300 rpm | 100 W | 2050 mA | 650 m³/h | 980 Pa | 70 dB(A) |
General Specifications
| Item | Details |
|---|---|
| Dimension | 150 × 150 × 51 mm (172mm impeller) |
| Weight | 0.86 kg |
| Material | Metal frame + Plastic impeller |
| Bearing | Precision preloaded ball bearing |
| Mounting | Any angle, Screw: M4 |
| Wire Length | 365 mm (±10 mm) |
| Wire Definition | Red (+UB), Blue (GND), Violet (PWM), White (Tacho) |
| PWM Frequency | Typical 2 kHz |
| Operating Temp | -20℃ ~ 70℃ |
| Storage Temp | -40℃ ~ 80℃ |
| Protection Class | IP20 |
| Built-in Protection | Reverse polarity, locked rotor, overvoltage & undervoltage protection |
| Service Life | 70000 ~ 84000 hours (@40℃) |
| Certifications | CE, EAC, UL, VDE, CSA, CCC |
Main Features
- Super large airflow and high static pressure, ideal for high-resistance cooling systems
- Full-function PWM speed regulation + tacho feedback, easy for intelligent system integration
- Multiple electronic protections + built-in fuse, greatly improve operation safety
- Metal frame for high structural strength, suitable for heavy-duty industrial scenarios
- Strict EMC compliance, stable anti-interference performance
Application
High-power inverters, energy storage cabinets, industrial power supplies, large automation equipment, HVAC systems and other industrial ventilation & heat dissipation scenarios.
