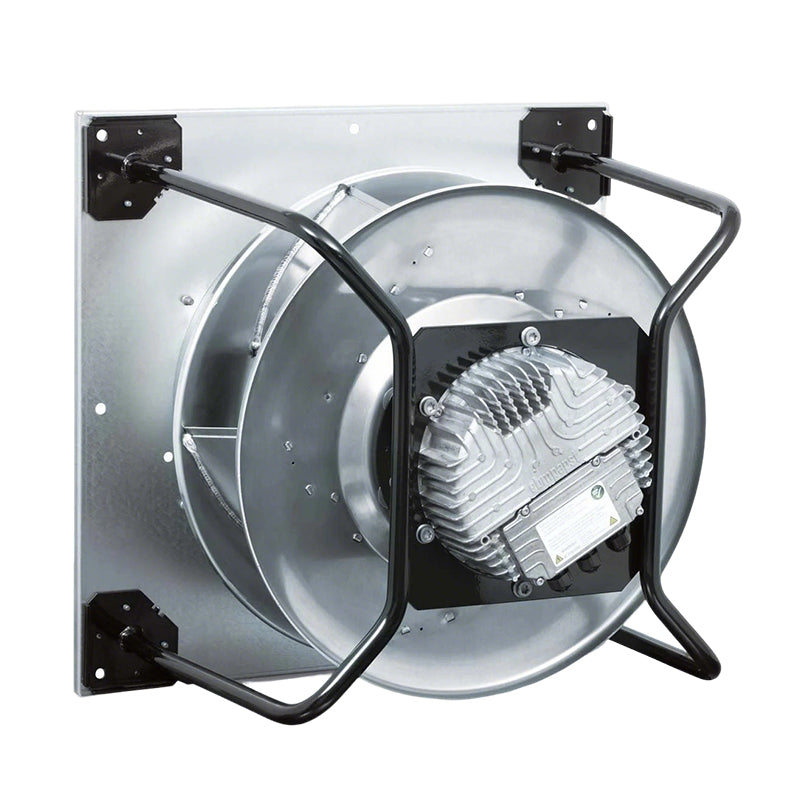

ebm-papst K3G310-PH58-32 EC Plug Fan
Product Overview
1. Core Performance Parameter Table
| Parameter Item | Specification |
|---|---|
| Full Model Number | K3G310-PH58-32 |
| Product Type | EC Backward Curved Plug Fan |
| Impeller Diameter | 310 mm |
| Motor Type | Integrated 3-phase GreenTech EC Motor |
| Nominal Supply Voltage | 3~ 400 VAC |
| Operating Voltage Range | 340 ~ 480 VAC |
| Frequency | 50 / 60 Hz |
| Rated Speed | 2450 rpm |
| Rated Input Power | 680 W |
| Rated Input Current | 1.4 A |
| Optimum Efficiency Airflow | 2720 m³/h |
| Optimum Static Pressure | 530 Pa |
| Maximum Static Pressure | 665 Pa |
| Overall Static Efficiency | 68.9 % |
| ErP Efficiency Grade N | 79.6 |
| Operating Ambient Temperature | -40 ℃ ~ +60 ℃ (intermittent startup allowed below -25℃) |
| Storage & Transport Temperature | -40 ℃ ~ +80 ℃ |
2. Mechanical & Structural Specifications
| Item | Technical Details |
|---|---|
| Impeller | 7 pcs backward-curved PP plastic blades, clockwise rotation (viewed from rotor side) |
| Fan Housing | Integrated galvanized steel plug fan casing with anti-corrosion coating |
| Inlet Nozzle | One-piece molded plastic inlet ring for optimized airflow intake |
| Electronic Terminal Box | Die-cast aluminum alloy weatherproof enclosure |
| Bearing System | Sealed heavy-duty precision ball bearing |
| Operation Duty | S1 (24-hour continuous non-stop operation) |
| Protection Class | IP55 |
| Insulation Class | Class F |
| Environmental Grade | H2 (Wide tolerance for dust, humidity & temperature fluctuation) |
| Mounting Method | Horizontal shaft / vertical shaft installation optional, built-in mounting flanges |
| Drainage Design | Condensate drain holes on rotor side to avoid water accumulation |
3. Control, Communication & I/O Functions
| Function Item | Technical Details |
|---|---|
| Speed Regulation | Dual control: 0–10 V analog signal / PWM speed regulation |
| Communication Protocol | RS485 MODBUS-RTU V6.3 for remote monitoring & parameter setup |
| Auxiliary Power Output | 3.3~24 VDC adjustable output, Max 800 mW for external sensors |
| Offline Parameter Power | 15–50 VDC external power supply for offline MODBUS configuration |
| I/O Interface | Configurable multi-channel digital input, analog input & output |
| Feedback Signal | Tacho speed signal output for real-time rotation monitoring |
| Fault Feedback | Floating fault alarm relay (COM / NC contact) |
| Status Indicator | Tri-color LED indicator: Green=Normal, Orange=Warning, Red=Fault |
| Startup Mode | Multi-stage soft start to suppress inrush current impact |
4. Built-in Protection & EMC Compliance
| Protection Item | Description |
|---|---|
| Electrical Safeguard | Reverse polarity protection, locked rotor auto-restart, over/under voltage & phase loss protection, motor current limiting |
| Thermal Protection | Dual overheat protection for motor stator and drive electronics module |
| Safety Touch Current | ≤ 3.5 mA (Compliant with IEC 60990 safety standard) |
| EMC Standards | EN 61000-6-2 (Industrial interference immunity), EN 61000-6-3 (Radiation emission) |
5. Certifications & Energy Compliance
- Executive Standard: EN 61800-5-1
- Global Certifications: CE, UKCA, EAC, UL, CSA
- Energy Regulation: Fully meets EU 327/2011 ErP Ecodesign Directive
- Performance Test Standards: ISO 5801 (Air performance), ISO 13347 (Noise measurement)
6. Key Product Features
- High Energy Efficiency: Optimized backward curved impeller + EC motor design, far exceeds EU ErP minimum efficiency requirements, greatly reduces long-term operation power cost.
- Industrial-Grade Durability: IP55 dustproof & waterproof rating, H2 wide environmental grade, stable performance under high humidity, dusty and extreme temperature working conditions.
- Flexible Intelligent Control: Dual analog/PWM speed control plus standard MODBUS communication, easily integrated into centralized building & industrial automation control systems.
- Complete Safety Protection: Full set of electrical and thermal protection mechanisms, effectively prevent damage caused by abnormal power supply, blockage and overheating.
- Versatile Installation: Built-in mounting flanges with multiple mounting orientations, equipped with condensate drain holes to adapt to outdoor and underground ventilation equipment.
7. Typical Application Scenarios
