Alcatel-Lucent 3HE05935AA 100GBASE-LR4 CFP Transceiver | Nokia 7750 SR

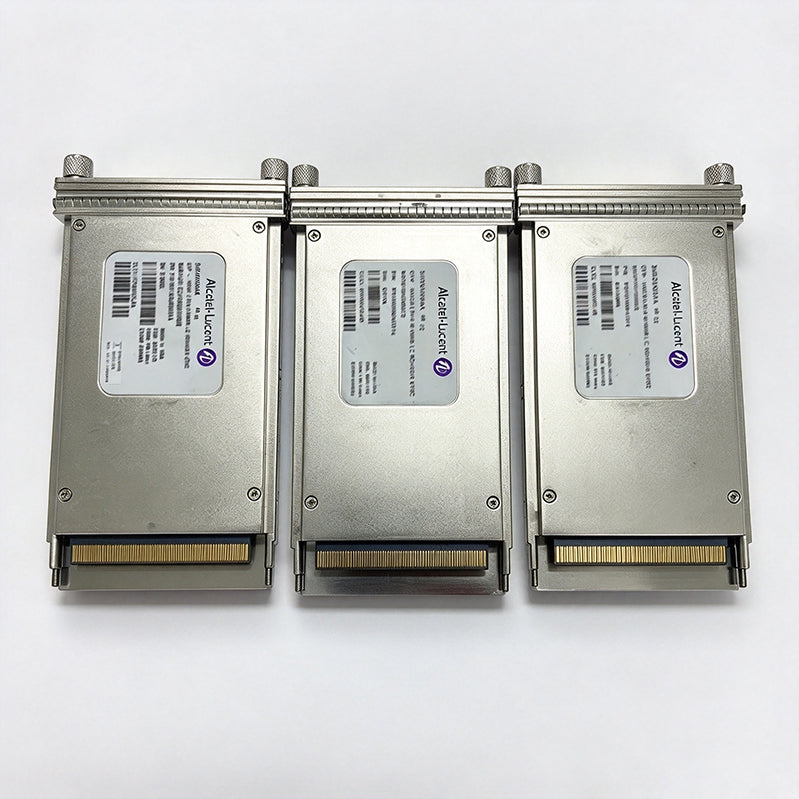

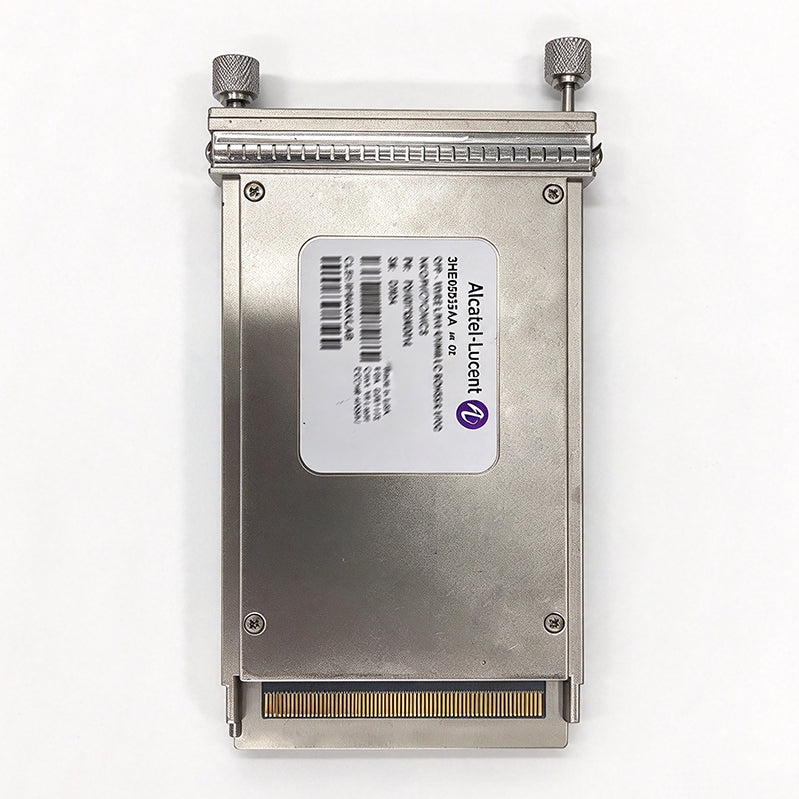

Alcatel-Lucent (Nokia) 3HE05935AA 100GBASE-LR4 CFP Optical Transceiver

3HE05935AA is an original Alcatel-Lucent / Nokia CFP form factor optical transceiver, 100GBASE-LR4 for single-mode fiber, supporting up to 10km transmission. It is widely deployed on 7750 SR series service routers and compatible OTN / packet transport line cards for 100G packet service interconnection.

Product Overview

Part Number: 3HE05935AA
Form Factor: CFP
Standard: 100GBASE-LR4
Wavelength: 1310nm band
Interface: Duplex LC
Reach: Up to 10 km over single-mode fiber (SMF)
Operating Temperature: 0°C to 70°C
Core Function: 100G Ethernet optical transmission for router / transport card uplink & inter-node connection
Supported Platform: Nokia Alcatel-Lucent 7750 SR series (confirm exact line card compatibility before deployment)

This is a hot-pluggable optical transceiver module with DOM digital optical monitoring, enabling real-time monitoring of Tx power, Rx power, temperature and supply voltage. Designed for carrier-grade data center interconnection, metro IP backhaul and enterprise high-speed core links. Always verify line card firmware release and optical port compatibility before ordering.

Key Features

• Original Alcatel-Lucent 3HE05935AA CFP 100GBASE-LR4 transceiver
• 100G Ethernet rate, LR4 4-lane WDM implementation, 1310nm band
• Up to 10km transmission on single-mode fiber, LC duplex connector
• DOM (Digital Optical Monitoring) support for real-time optical parameter readout
• Hot-swappable CFP package, carrier-grade design with 0°C to 70°C operating temperature
• Mainly used with 7750 SR service routers and compatible OTN transport blades

Compatibility Notice

3HE05935AA is a 100G LR4 CFP optical transceiver, not a DWDM coherent module, amplifier or muxponder card. Primary host platform is Nokia 7750 SR router family. Compatibility depends on the specific line card model and software version. Please confirm port support and release matrix before purchase.
