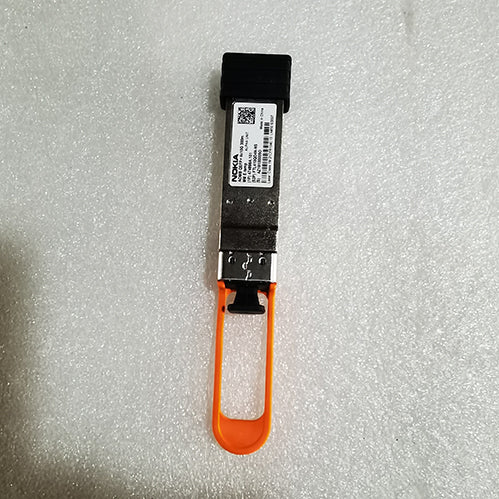

Nokia 474899A.101 QSFP+ optical module AOMB
Nokia 474899A.101 QSFP+ optical module AOMB
500 in stock
Vendor: Skyward Telecom
Share
Collapsible row
Collapsible row
Our Services
- Cost-effective equipment
- Faster delivery
- Worldwide shipping
- Alternative supply
- Sample service
- Test and warranty
1. Core Technical Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Product Model | Nokia 474899A.101 (corresponding model: FTL410QD4N-NS) |
| Product Type | QSFP+ packaged optical transceiver module |
| Maximum Data Rate | 41.2 Gbps, supporting multi-rate adjustment from 1.06 Gbps to 10.5 Gbps per channel |
| Transmission Performance | Maximum transmission distance: 300 meters over OM3 multimode fiber, 400 meters over OM4 multimode fiber; operating wavelength: 850 nm |
| Core Components | Adopts Vertical Cavity Surface Emitting Laser (VCSEL) array technology; transmitter: 4-channel VCSEL; receiver: PIN photodiode |
| Interface Specification | Equipped with 1×12 MPO (i.e., MTP12) interface; supports I2C interface for digital diagnostic functions (DDM), enabling monitoring of transmit and receive power |
| Power Supply & Consumption | 3.3V power supply, maximum power consumption < 1W |
| Operating Temperature | Extended operating temperature range: -5℃ to 85℃ |
2. Core Performance & Compliance Advantages
- Flexible Multi-scenario Adaptation: Capable of building 40 Gigabit Ethernet links and splitting into four 10 Gigabit Ethernet links. It is also compatible with 10 Gigabit Fibre Channel-related protocols and InfiniBand Quad Data Rate (QDR) standards, adapting to various high-speed data transmission scenarios.
- Strong Compatibility & Compliance: Complies with QSFP+ Multi-Source Agreement (MSA) and IEEE 802.3ba 40G Base-SR4 standard, as well as IEEE 802.3ba 10G Base-SR standard. It seamlessly integrates with Nokia's equipment without compatibility issues and meets EU RoHS environmental standards.
- Easy Operation & Maintenance: Features hot-swappable design, allowing module insertion and replacement without shutting down the device, significantly reducing the impact of equipment maintenance on services. Equipped with built-in digital diagnostic functions, it enables real-time monitoring of operating status, facilitating timely troubleshooting of transmission faults.
