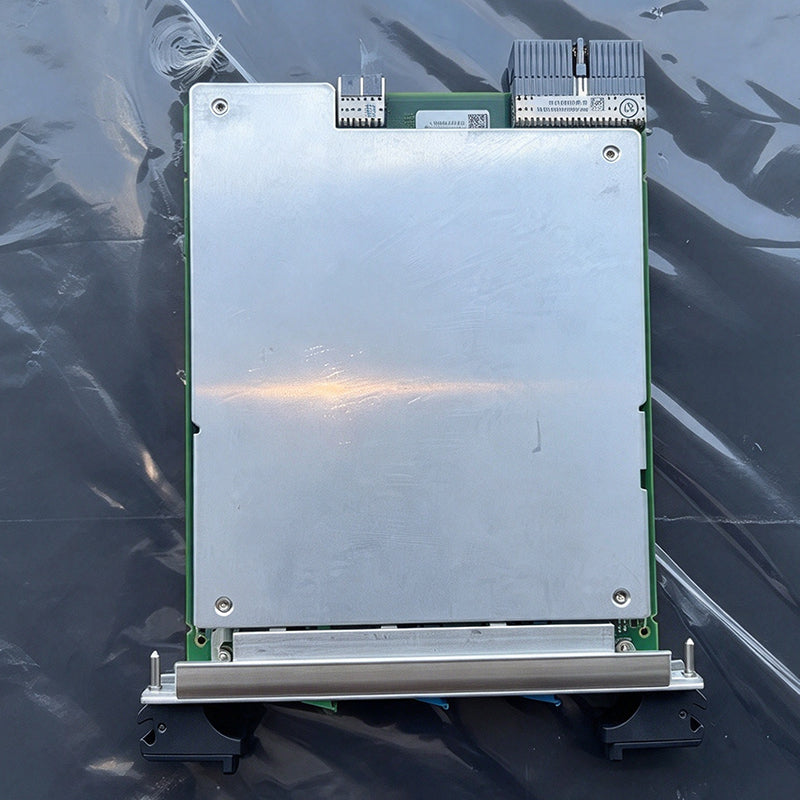

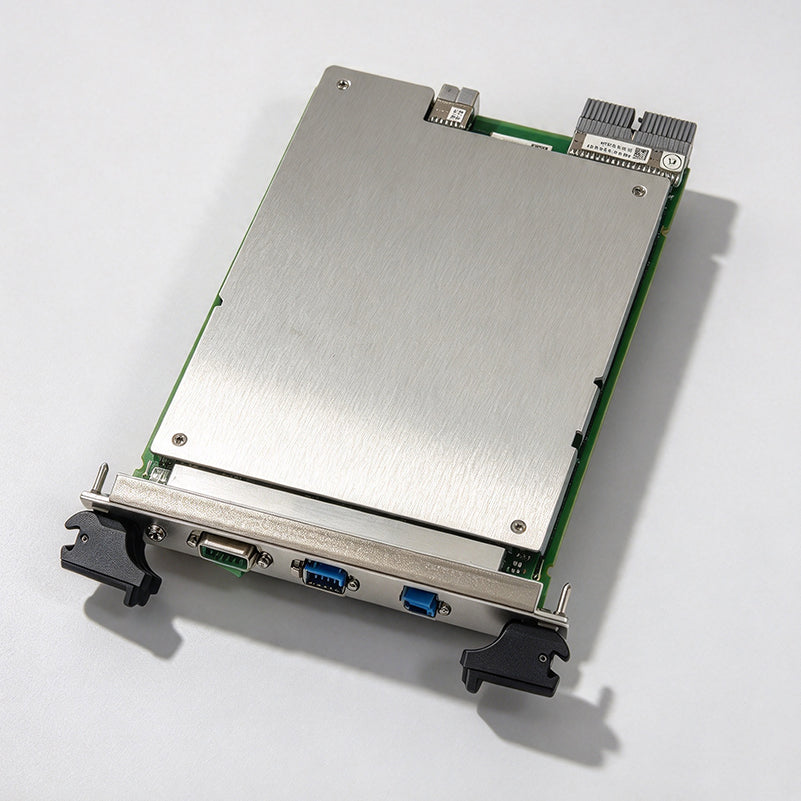

Nokia (Alcatel‑Lucent) 8DG63264AA EZ1641A MON-OTDR Optical Monitoring Card

Nokia (Alcatel‑Lucent) 8DG63264AA EZ1641A MON-OTDR Optical Monitoring Card

EZ1641A MON-OTDR optical monitoring board for Nokia 1830 PSS optical transport platform. It acts as an auxiliary OTDR module, paired with supported amplifier cards to deliver in-service fiber monitoring, fiber characterization and fault localization without disrupting live DWDM traffic.

Product Overview

Part Number: 8DG63264AA

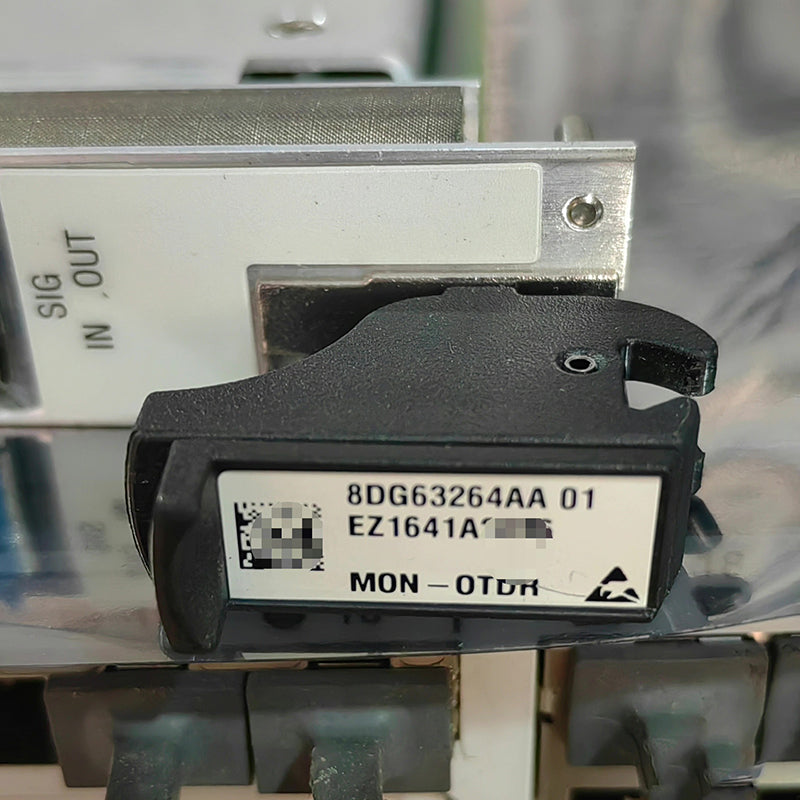

Card Identifier: EZ1641A
Compatible Amplifier Cards: A2325A, AHPHG, AHPLG, AM2032A, AM2125A, AM2318A, AM2625A, RA2P
Supported Platform: Nokia 1830 PSS series (auxiliary module working with the above listed amplifier cards)

This EZ1641A MON-OTDR card integrates Optical Time Domain Reflectometry monitoring function for DWDM fiber spans. It monitors fiber loss events, detects breaks and measures fiber link signatures while the customer traffic remains active. Front panel SIG IN / OUT optical ports connect inline with the line port of paired amplifier cards for continuous fiber health surveillance across metro and long-haul DWDM networks.

Key Features

• In-service OTDR monitoring, no service interruption during fiber testing
• Optical Time Domain Reflectometry for fiber fault location and loss profiling

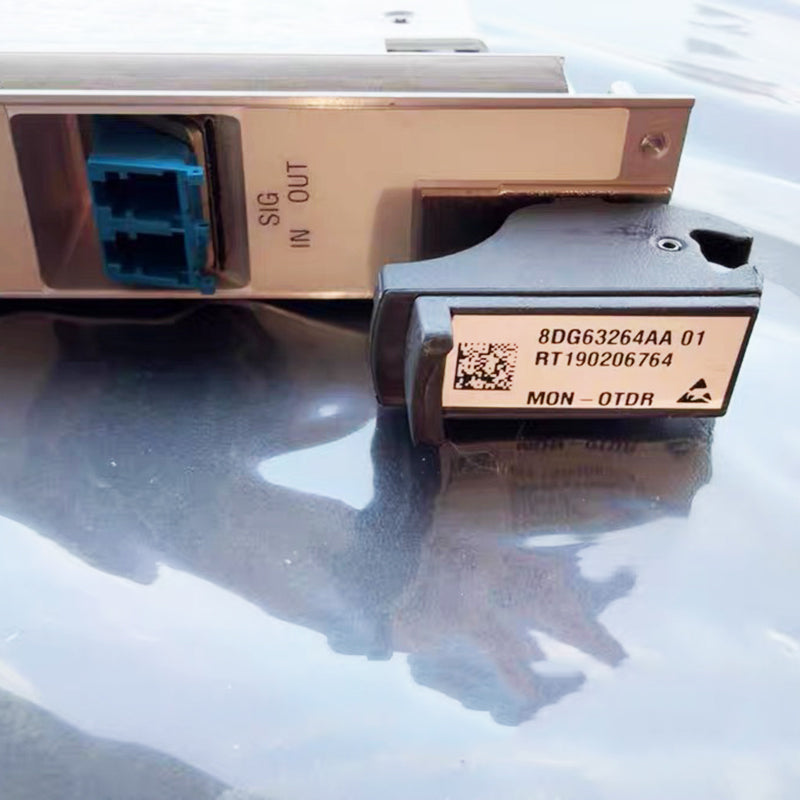

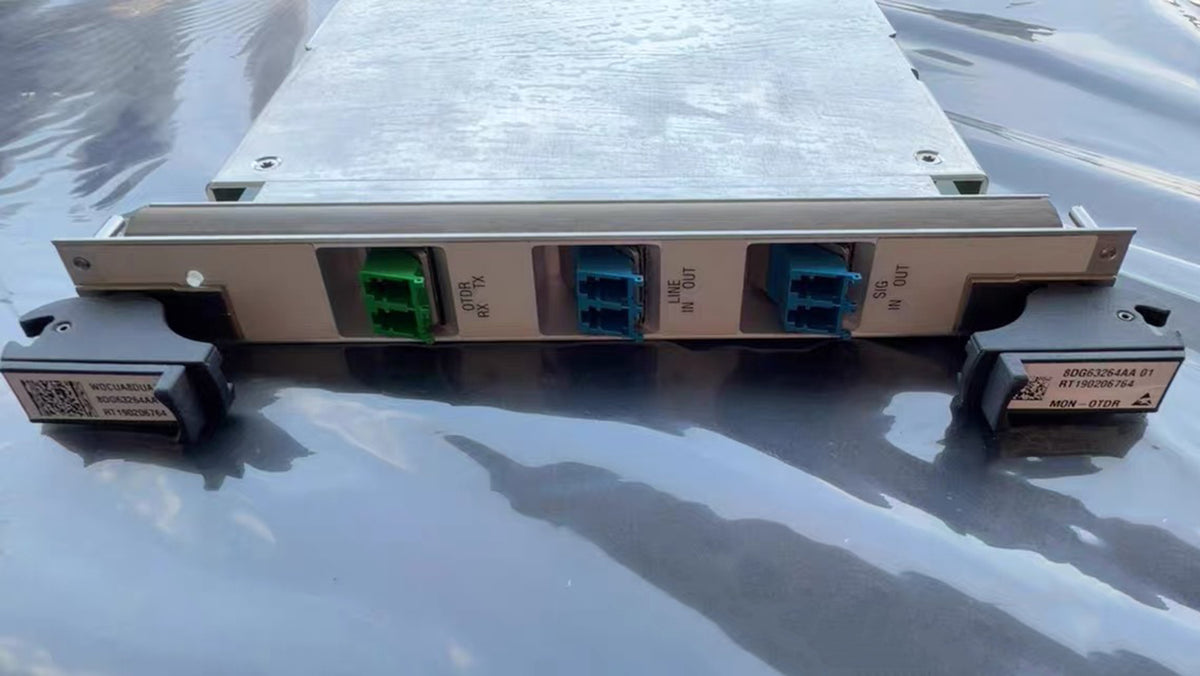

• Front panel SIG IN / OUT optical ports for inline connection with paired amplifier cards
• Auxiliary monitoring module, designed to work with specified 1830 PSS amplifier cards
• Carrier-grade monitoring for DWDM metro and regional optical links
• Hot-swappable design for in-service maintenance

Compatibility Notice

This MON-OTDR is an auxiliary monitoring module. Its usability depends on the paired amplifier card, not the chassis alone. It is intended to work with the listed amplifier models: A2325A, AHPHG, AHPLG, AM2032A, AM2125A, AM2318A, AM2625A, RA2P within Nokia 1830 PSS series. Please confirm your amplifier card model before ordering to avoid mismatch.
