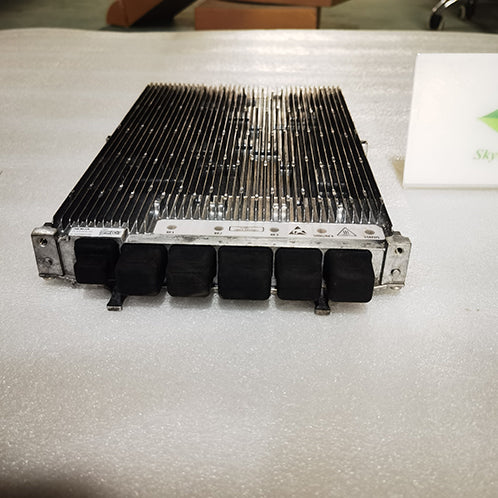

Nokia 472797A.101 FBBC

Name: Nokia 472797A.101 FBBC
Brand: Skyward Telecom
Availability: InStock

500 in stock

Vendor: Skyward Telecom

Collections: Boards & Equipments NOKIA Nokia AirScale series Nokia Devices Nokia RRU series Nokia Telecom Boards

Collapsible row

Our Services

Cost-effective equipment
Faster delivery
Worldwide shipping
Alternative supply
Sample service
Test and warranty

Nokia 472797A.101 FBBC is a high-performance capacity expansion module dedicated to Nokia Flexi Multiradio 10 and Airscale series base stations. As the upgraded and iterated version of the FBBA module, it features significant improvements in signal processing capability, compatibility, and expansion efficiency, serving as a core expansion component for base stations to address high-traffic service scenarios. Below is a detailed description based on product technical manuals:

I. Core Positioning & Iterative Advantages

With the part number 472797A.101, the FBBC module is specifically designed for the FSMF system module of Nokia Flexi Multiradio 10 base stations while being compatible with the core architecture of Airscale series base stations. As an upgraded model of the FBBA module, it optimizes the hardware chip solution and link transmission protocol, achieving a capacity increase of over 30% within the same installation space. It can more efficiently meet operators' service bearing needs in scenarios such as 4G network expansion and early 5G hybrid networking. Mass production of this module started in Q2 2016, with manufacturing locations including multiple Nokia global production bases in Finland, China, India, etc.

II. Compatible Standards & Core Performance Parameters

1. Comprehensive Multi-standard Compatibility

Supports the full range of 2G-4G communication standards including GSM/EDGE, WCDMA/HSPA+, LTE (TD/FDD), and LTE-Advanced. Some versions can adapt to the secondary carrier function in 5G NSA (Non-Standalone) mode through firmware upgrades, meeting the requirements of mixed-operation scenarios of multi-generational networks.

2. Key Interfaces & Transmission Rates

Equipped with 2 high-speed optical interfaces, supporting flexible switching between OBSAI or CPRI link modes:

OBSAI Link: Maximum transmission rate of 12Gbps, supporting multi-module cascading expansion;
CPRI Link: Compatible with CPRI v7.0 protocol, maximum rate of 24.3Gbps, meeting the high-speed transmission needs of large-capacity RF signals and control signals.

3. Processing Capability

A single module supports a maximum of 8-carrier LTE signal processing or 16-carrier GSM/WCDMA signal concurrent processing, capable of bearing a downlink peak throughput of up to 2Gbps per module, satisfying high-speed data transmission needs in dense user areas.

III. Structural Design & Installation Features

1. Physical Specifications

Adopts a 19-inch rack half-width design, with a height of only 1U (44.45mm) and a weight of 2.2kg. It has an IP20 protection rating, suitable for dry and well-ventilated environments such as indoor equipment rooms and base station shelters.

2. Installation Adaptability

Must be inserted into the dedicated expansion slot of the FSMF system module. A single FSMF module can carry up to 4 FBBC modules (compared to only 2 for the previous FBBA), significantly increasing the expansion limit of a single system module. It supports hot swapping during installation, allowing module replacement or expansion without powering off the base station, ensuring continuous network operation.

3. Collaborative Components

Needs to work collaboratively with FSMF baseband processing modules, EMHA RF modules, antenna feeder systems, etc., to form a complete signal processing and transmission link of the base station. During installation, it is necessary to ensure that the firmware version is compatible with the base station's main control unit (firmware version v15.0 or above is recommended).

IV. Application Scenarios & Core Functions

1. Typical Applications

Expansion of 4G network hotspots (such as urban business districts, transportation hubs, large venues, etc.);
Supporting expansion for spectrum refarming after 2G/3G network decommissioning;
Capacity enhancement of 4G anchor base stations in 5G NSA networking mode;
Step-by-step expansion of base stations in remote areas, reducing one-time investment costs.

2. Core Functions

Integrates intelligent load balancing function, which can dynamically allocate signal processing resources according to user distribution, improving network utilization;
Supports the base station's energy-saving sleep mechanism, automatically reducing redundant power consumption during low-traffic periods, aligning with the needs of green network construction;
Built-in high-precision antenna feeder monitoring module, which can real-time feedback parameters such as standing wave ratio and signal attenuation, facilitating remote fault diagnosis;
Equipped with hardware-level encryption function to ensure the security of user data transmission, complying with 3GPP security protocol standards.
